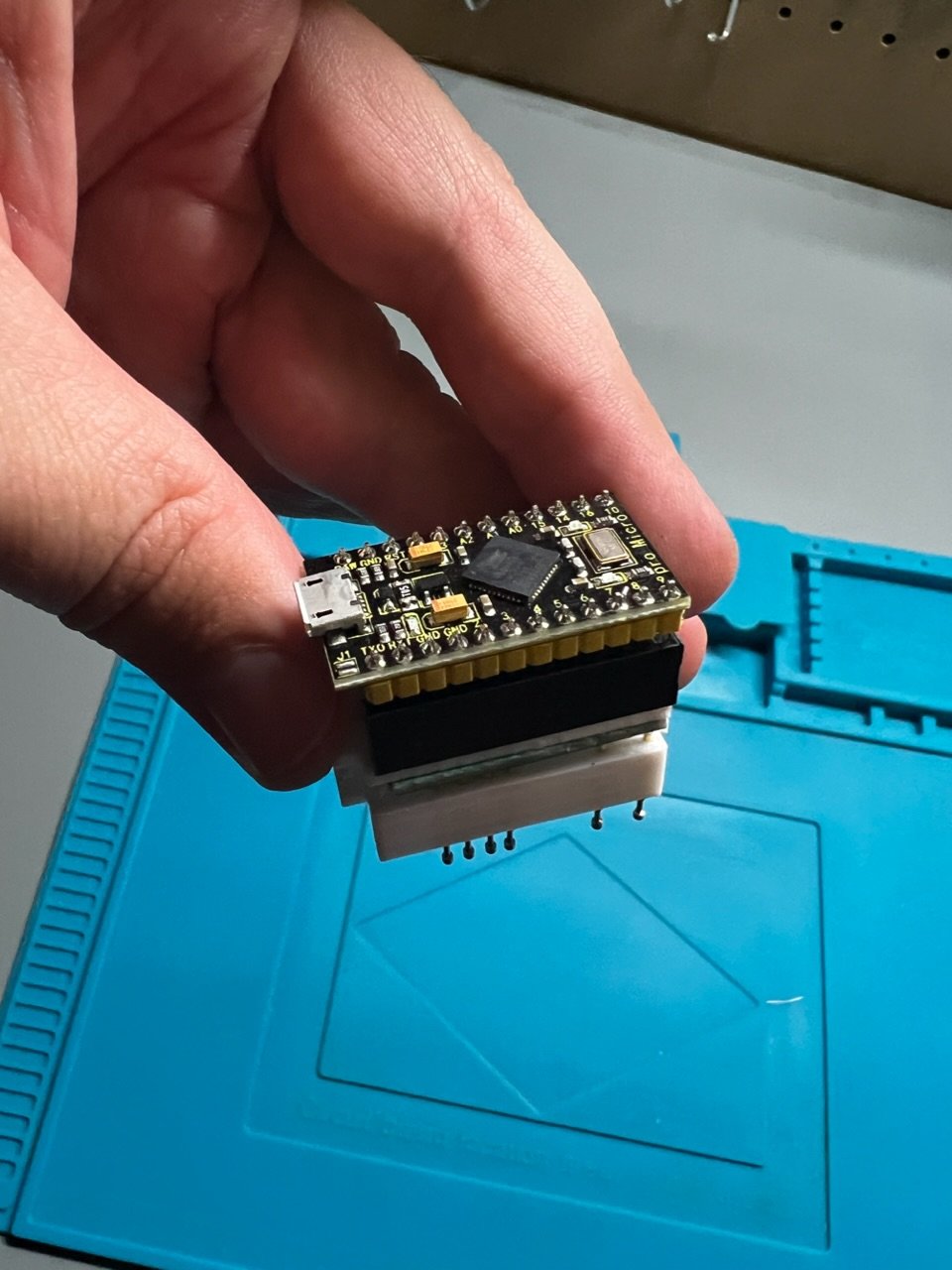

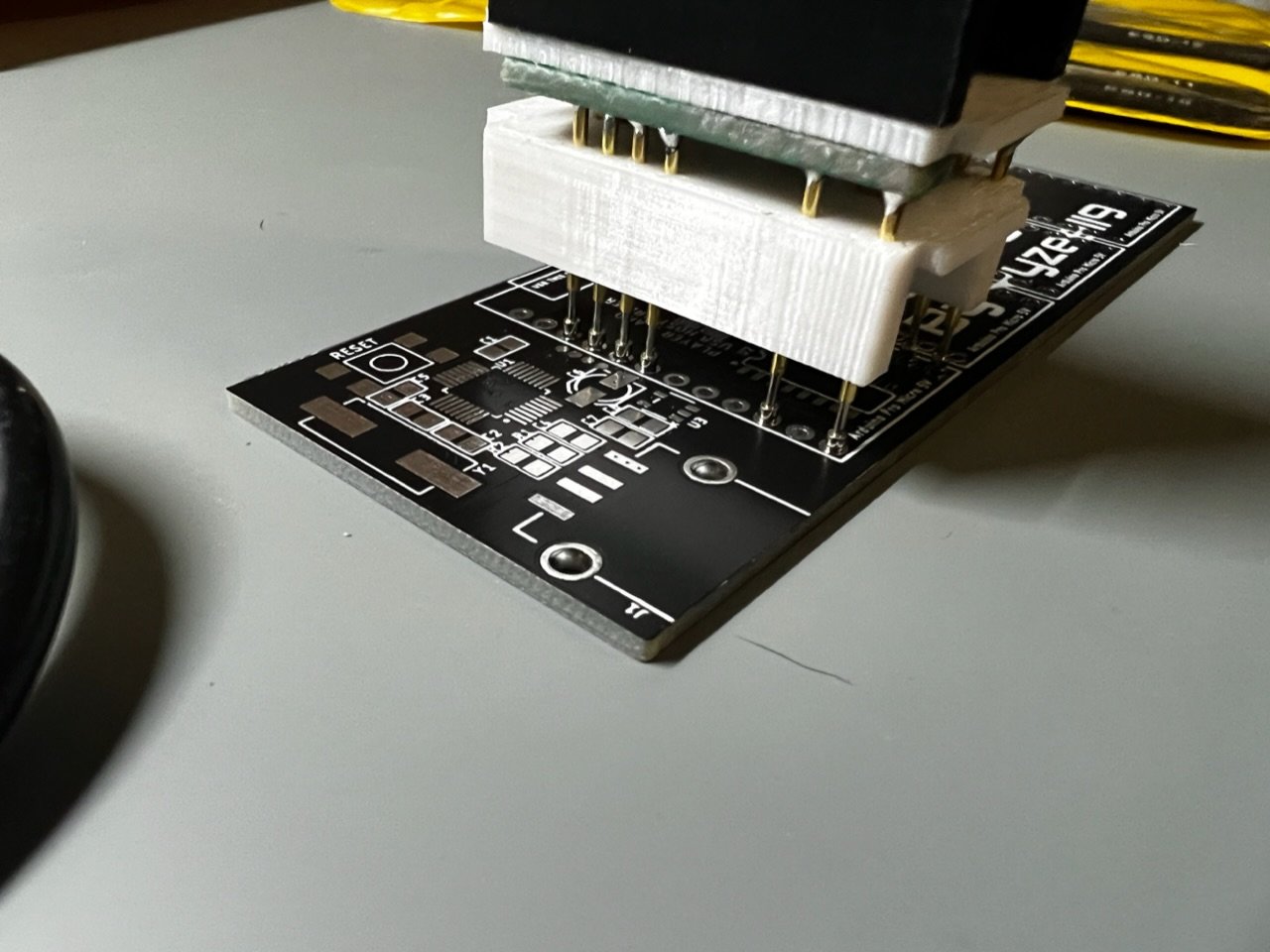

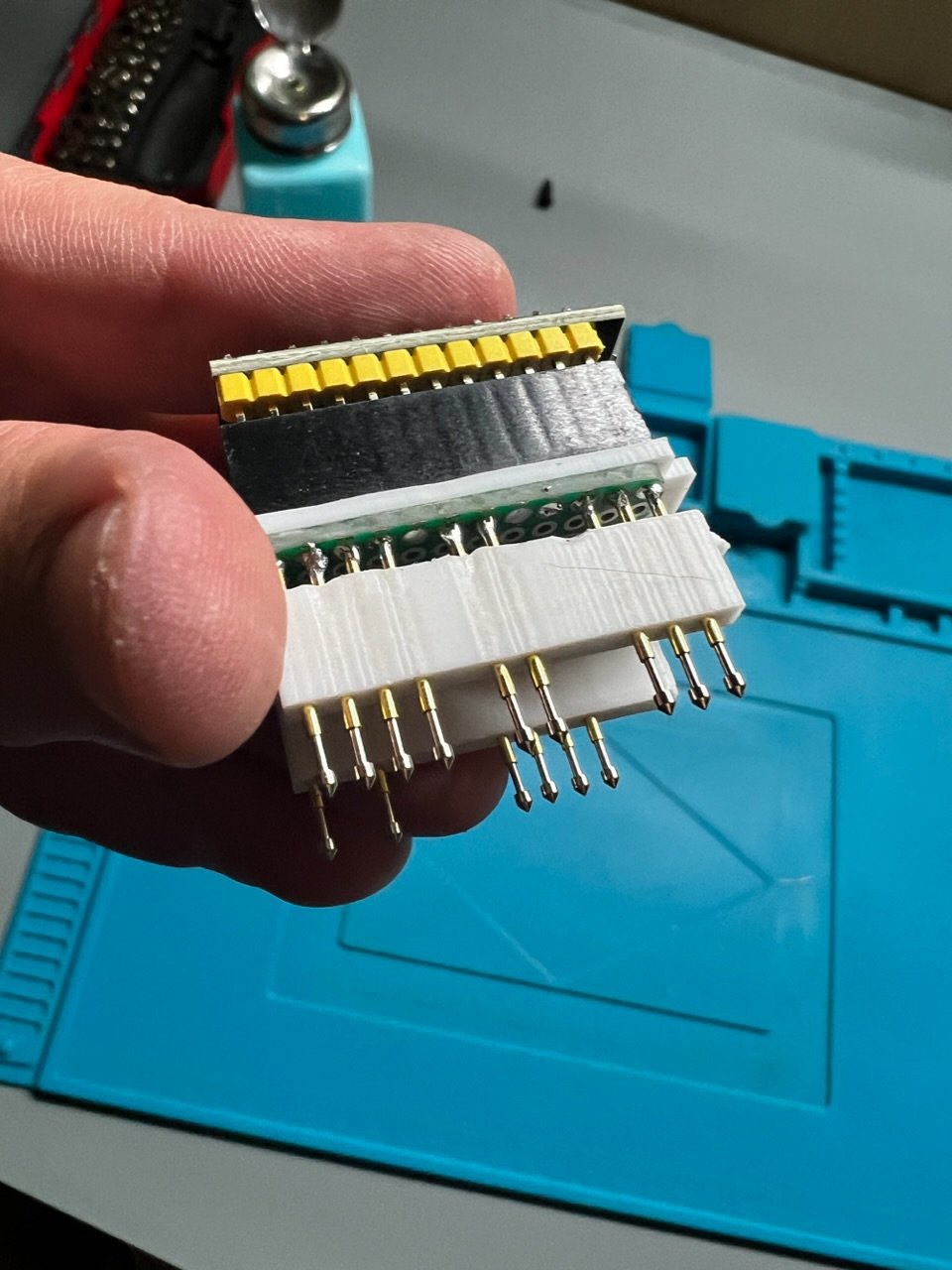

Dtomcat18 Posted June 17 Report Share Posted June 17 (edited) So getting ready to do my first OGX360 build and seen a lot of people have issues with U2 needing resoldered. But they don’t know until they run the test firmware. I wanted my pro micro soldered to the board and not through a header…. So I designed this test rig so I can run the test firmware before soldering the pro micro…. Thoughts? Edited June 17 by Dtomcat18 Missing word 1 Quote Link to comment Share on other sites More sharing options...
Donnie-Burger Posted June 17 Report Share Posted June 17 Very good idea. 1 Quote Link to comment Share on other sites More sharing options...
Donnie-Burger Posted June 17 Report Share Posted June 17 Check each leg with tweezers/ magnification or microscope as well. 1 Quote Link to comment Share on other sites More sharing options...

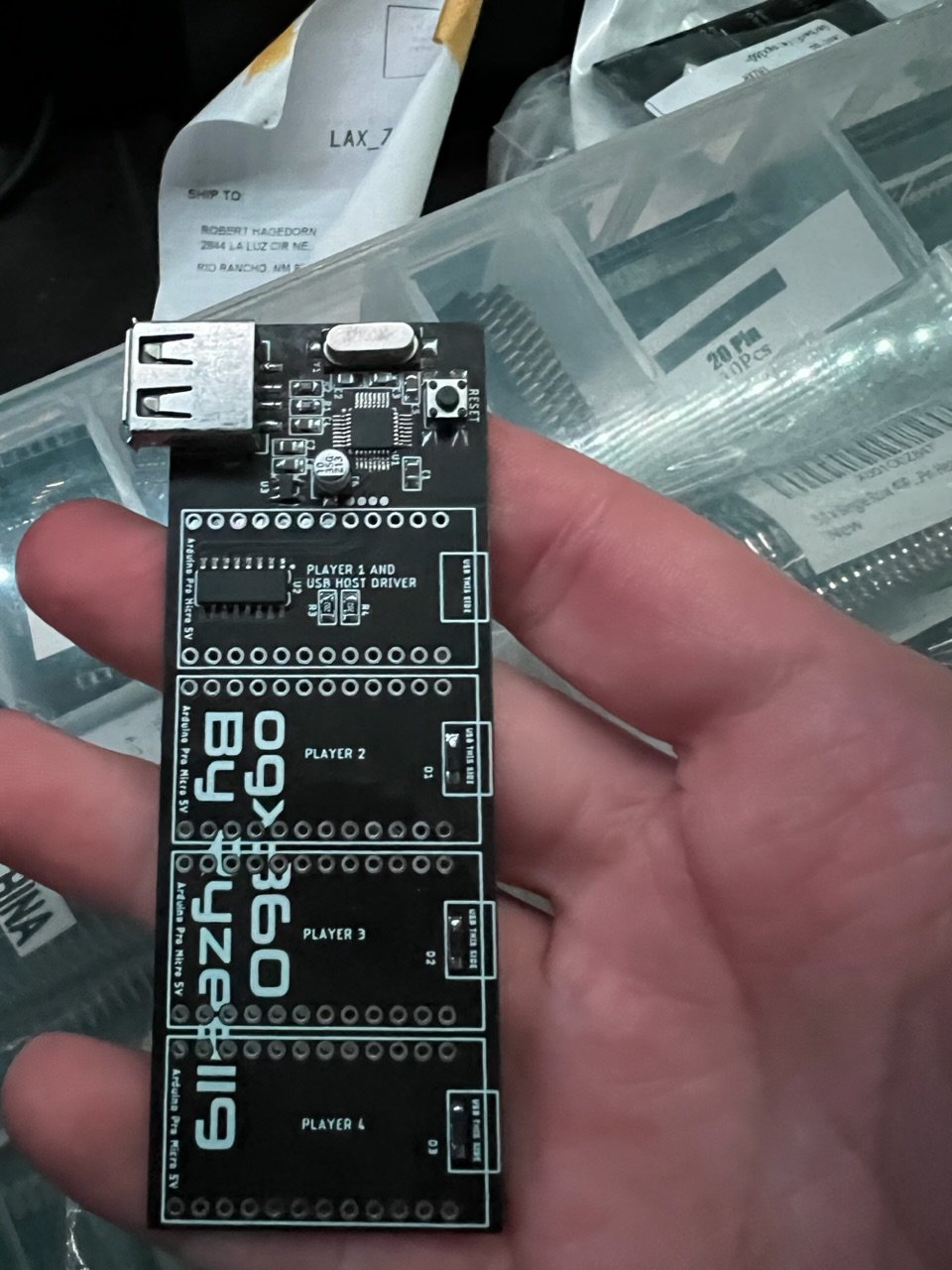

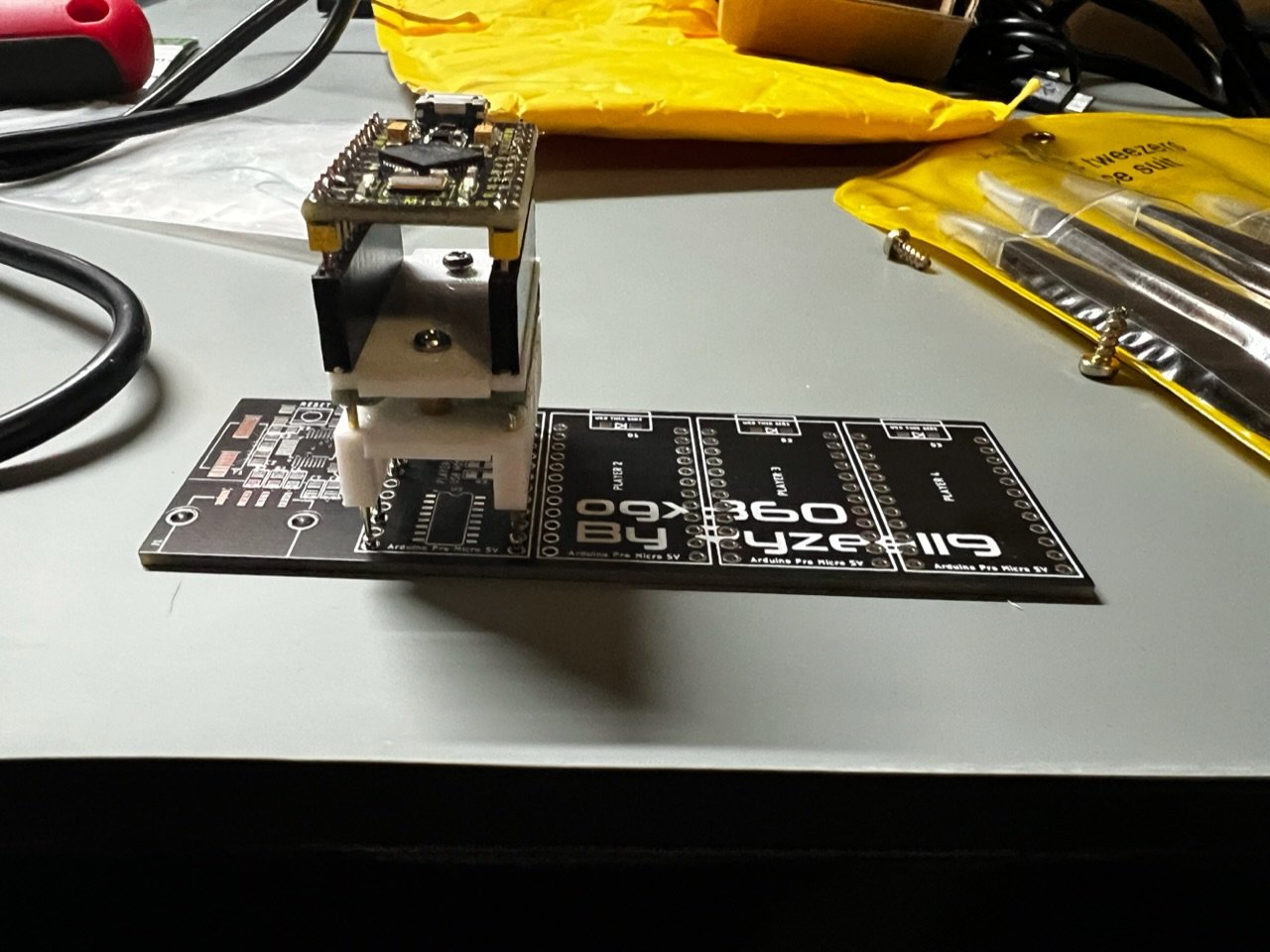

Dtomcat18 Posted June 19 Author Report Share Posted June 19 Got the boards in… my tool fits perfectly. Waiting on 2 components (U1, U2), then I’ll follow up on how it works. 2 Quote Link to comment Share on other sites More sharing options...
Donnie-Burger Posted June 19 Report Share Posted June 19 Looking tight. Quote Link to comment Share on other sites More sharing options...
Dtomcat18 Posted Wednesday at 06:41 AM Author Report Share Posted Wednesday at 06:41 AM Test rig worked amazing. First build a success! 1 Quote Link to comment Share on other sites More sharing options...
Donnie-Burger Posted Thursday at 03:32 AM Report Share Posted Thursday at 03:32 AM 20 hours ago, Dtomcat18 said: Test rig worked amazing. First build a success! I need to source all the parts for this project. Congrats bud. Put up some pics if you can. Quote Link to comment Share on other sites More sharing options...

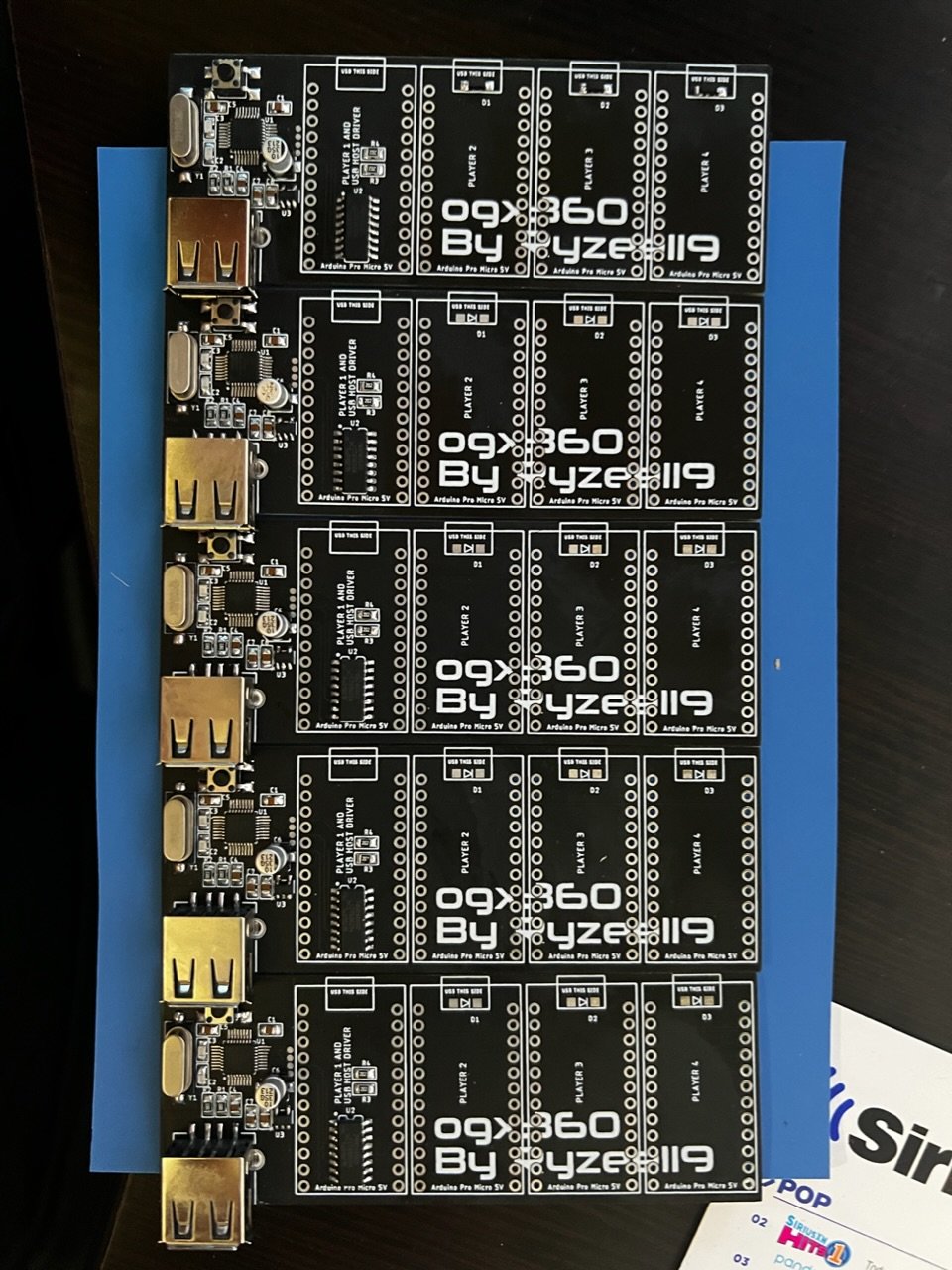

Dtomcat18 Posted 7 hours ago Author Report Share Posted 7 hours ago finish all… all passed so far… wireless receiver arrives today. I’ll install the remaining diodes after I ensure I placed them correctly (98% sure I did). I’ll post the 3D files later if anyone wants to make a test rig 1 Quote Link to comment Share on other sites More sharing options...

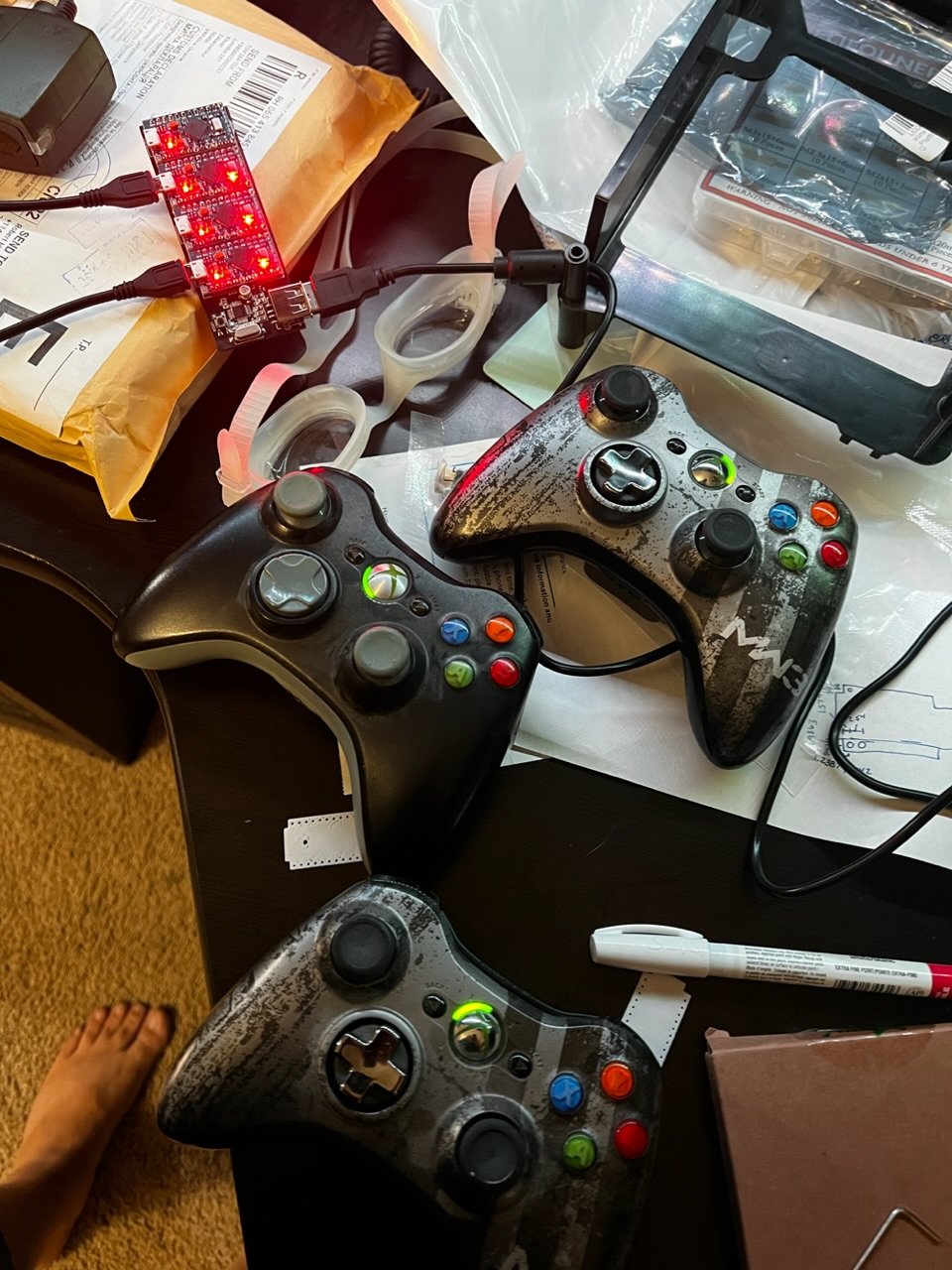

Dtomcat18 Posted 4 hours ago Author Report Share Posted 4 hours ago All passed 100%!! Built one fully… works like a charm! Now to sell the other 4 1 Quote Link to comment Share on other sites More sharing options...
Donnie-Burger Posted 4 hours ago Report Share Posted 4 hours ago 22 minutes ago, Dtomcat18 said: All passed 100%!! Built one fully… works like a charm! Now to sell the other 4 So dope! 1 Quote Link to comment Share on other sites More sharing options...
