I recently damaged my xbox while installing MakeMHz HDMI, I shorted the video encoder chip and killed the motherboard.

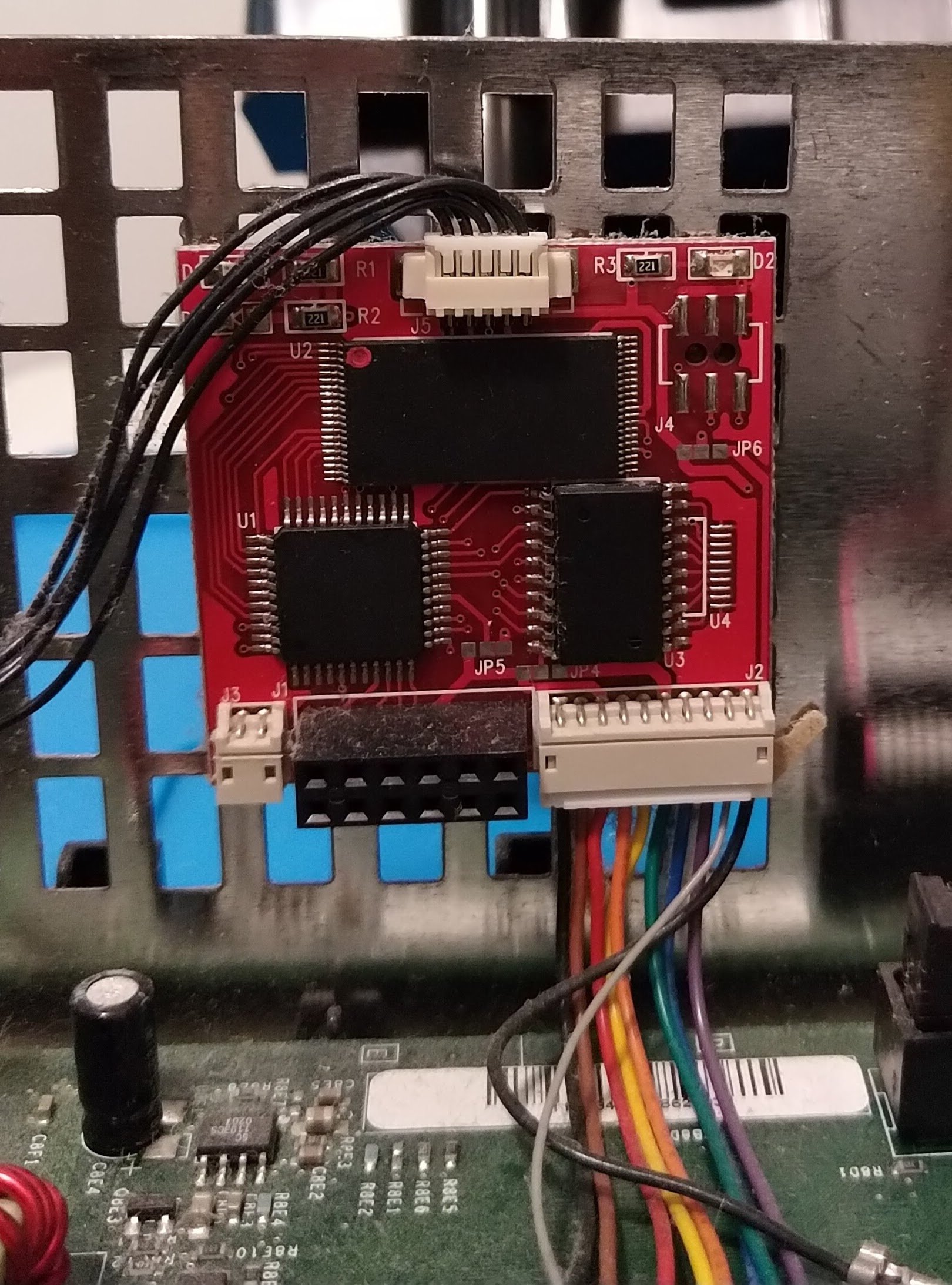

I swapped the motherboard since then with a 1.4/1.5 (FOCUS), salvaged the xblast lite modchip but the xbox does not boot once D0 is wired. Xbox does auto on/off twice then turns on with fast flashing light. This is the same pattern I usually get when I have a short during 128mb ram install. Also I thoroughly followed the instructions https://bitbucket.org/psyko_chewbacca/lpcmod_os/wiki/xblast_lite_manual/Installation
Long story short, the on board tsop is flashed with xblast OS and I can see the available banks of the modchip when D0 is not connected.
Is there way to test the modchip separately and eventually fix it? it is the best modchip I ever used till now and would hope to make it work again.
i received recently the xblast chip, was intended to use it mainly for ram upgrade but i have a xbox with tsop bad flash.
so the xblast has ind bios on bank 512 and x2 on bank 256, i flashed via menu the bank 256 with c:\tsop_m7.bin, went ok.
but when i load it from xblast os with a hexen dvd in drive, screen freeze at logo like no dvd was read...
tested with samsung and thomson drive.
what's going on ?
