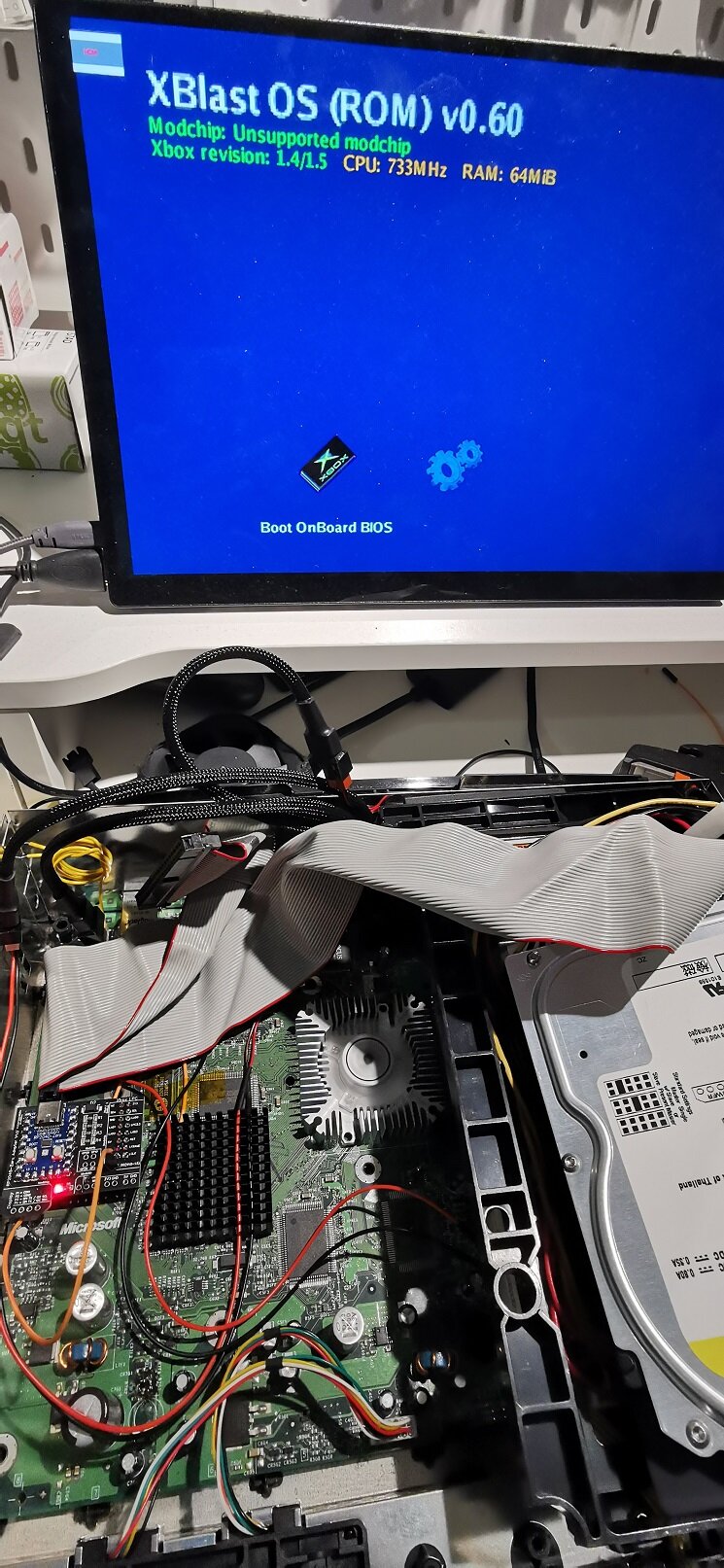

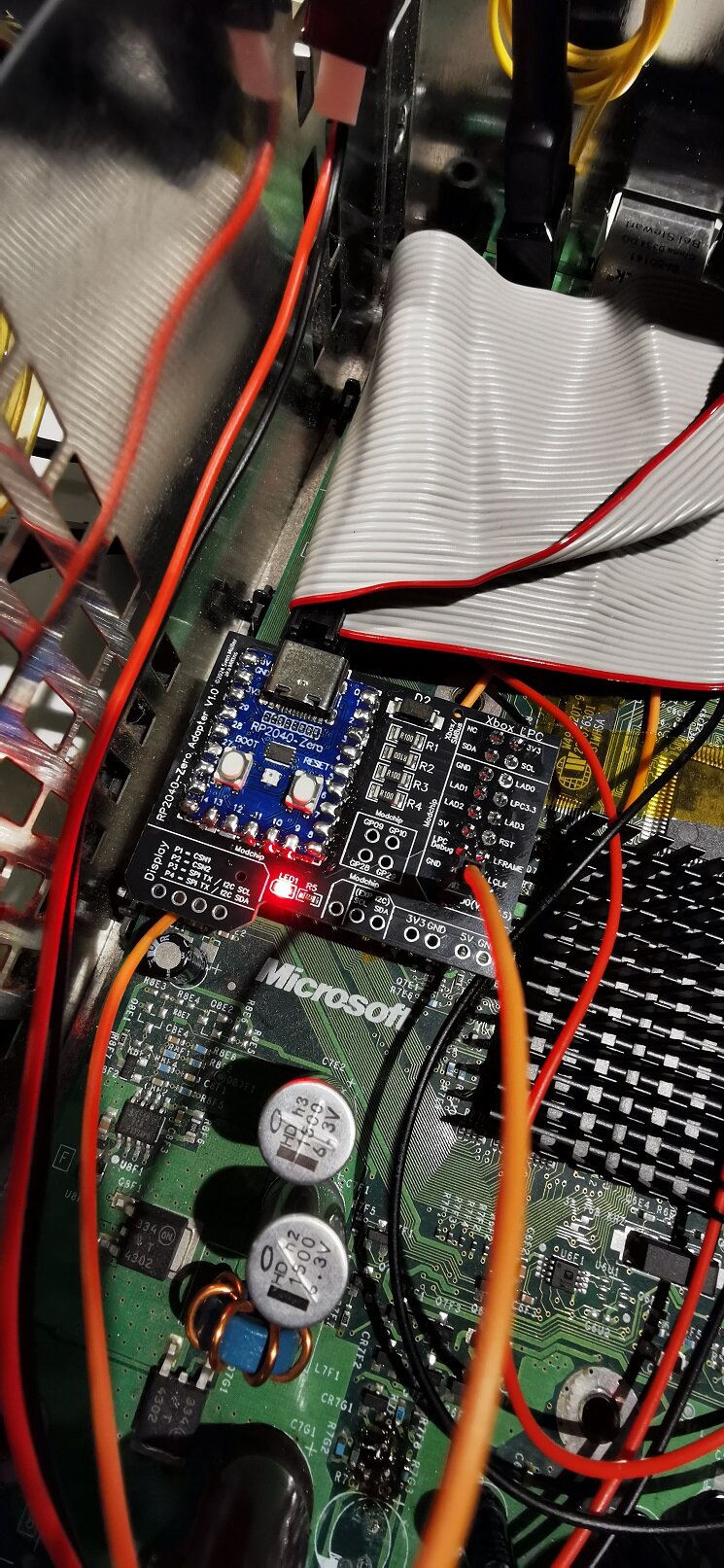

Mittns Posted October 23, 2024 Report Share Posted October 23, 2024 (edited) Didn't know where to put the thread, just wanted to show off my little achievement. I haven't had much to do with PCB building yet, but I've just received my very first little project today and had to test it directly. And it works, i'm happy. Nothing special, just the 4 needed resistors, a diode for protection and a power led. All pins from the rp2040 zero are connected and placed outside for future changes or projects. Also all pads described (except one (modxo status led) i forgot) Also some traces for 3V3, 5V and the Xbox SMbus, maybe it's useful later. Edited October 23, 2024 by Mittns 5 Quote Link to comment Share on other sites More sharing options...
