Well... figured I'd show my "collection".

First post will be my current 5 OG Xboxes, in order.


From left to right:

V1.1, X2 Lite w/ Cerbios 2.3.2 UDMA5, 160GB WD1600AAJB

V1.6, X-Changer 2.2 w/ Cerbios 2.3.2 UDMA5, 200GB Maxtor 6B200R0

V1.4, genuine Aladdin XT Plus2 (Chip ID BF52) w/ Cerbios 2.3.2 UDMA5, 160GB Samsung SP1654N, recapped

V1.6, ModXo on Raspberry Pi Pico USB-C w/ Cerbios 2.3.2 UDMA5, 1TB WD Caviar Green.

V1.4 Crystal, ST TSOP w/ iND-BIOS 5004.67, 250GB WD Blue

BONUS: Zephyr Elite 360 w/ 320GB Samsung HDD, Aurora dash and EXT_CLK over Coolrunner rev C1.



- all running XBMC

- Aladdin 1.4 and Pico 1.6 have had their cases painted - 1.4 is white/blue, and 1.6 is white/green.

- 1.4 now sports Panasonic all over it, except PSU which has original caps.

- 1.6 awaits a Startech adapter - I have a "narrow type" JM20330 adapter there for the time being.

- all use a single selfmade HD Component pack, from a Xbox 360 cable, of course 😁

- the Crystal was an interesting story of going thru a gypsy ghetto to purchase it 😂



Up next might be 360s. I have a lot of those to go thru so be sittin' tight!



Edited by CryogeniumFocus
  • Like 2
Link to comment
Share on other sites

Told y'all I'd be back with them 360s.


Topleft: JTAG Xenon CIB, MFR date 13/12/06 - Blades 2.0.6717 dash!

Topright: Zephyr_C, mfr date 17/09/07 - NXE 2.0.8955 dash

Bottom left: EXT_CLK Zephyr_C, MFR date 12/10/07

Bottom right: stock Arcade Falcon, MFR date 16/06/08, Kinect dash (forgot the number but it's 13 something.)

spacer.pngIn order, starting from the Mtn. Dew bottle:

1. JTAG Falcon, MFR date 30/10/07 - used to have Blades, but upgraded to 17559 after disabling the fuse burning circuit

2. stock Falcon, MFR date 20/08/07 - has Zephyr ratings as Falcons of that time didn't have proper stickers printed until 2008 or so. Has the original X810480 Rhea GPU, surprisingly not failed.

3. RGH1.2v2 Falcon w/ custom DVD trim, custom HDD painted, MFR date 22/07/08 (NAND extracted) - Xenon top case with Elite Falcon stickers pasted on, from a defunct unit (MFR date 18/03/08)

4. stock NXE Xenon, MFR 17/09/06 - literally one year apart between this Xenon and the white stock Zephyr mentioned earlier

Edited by CryogeniumFocus
  • Like 1
Link to comment
Share on other sites

  • 2 weeks later...

And another unit joins the OG crew - 1.6, Hitachi Drive, originally had ST310014ACE currently runs a 160GB WD Caviar SE WD1600AABB.





Already been cleaned a few weeks ago:




XCAT has been run on it already. Original HDD is now unlocked and I will also do a PC local backup w/ FATXplorer. Chipped with Modxo+Cerbios 2.3.2 UDMA5 over a USB-C Pico (this would be the new age cheapmod lol). Might upgrade it to a 1TB Barracuda once I can get hold of a M03C SATA adapter to experiment with. Hopefully a translucent green case shows up as well, since I'd want to transfer this 1.6 into one.

Edited by CryogeniumFocus
  • Like 2
Link to comment
Share on other sites

I do love a nice 1.6



I got a new one joining the family also. I also plan on chipping with a rp2040. I'm just waiting for Promo to be able to be flashed on it. The pinout may change on the adapter board for the 2040. I don't want to build one until it's finalized.


Edited by lopenator
  • Like 1
Link to comment
Share on other sites

I had a 1.0 board as well though unusable since I had long lost the USB daughterboard unfortunately. Ah well.

I hope I can source a green shell (heck, it can be a broken mobo inside for all I care, the green shell is the one I'd want 😅) and update the 1.6 with a M03C chinesium SATA adapter (I love me a DIY solution and the M03C seems right up my alley) as well as a 1TB drive - either a 7200.12 Barracuda or an Apple pulled WD Black WD1003FALS. Shipping to Romania might be a bit of a problem tho, but I hope I can work out something soon.

btw what adapter board? The ones I've done on my two 1.6s that run ModXo, I just slapped the USB-C Pico w/ some double-sided tape and soldered away wires at it lol. I have a really long (3 meters long) Swissten USB-C cable that I use for these.

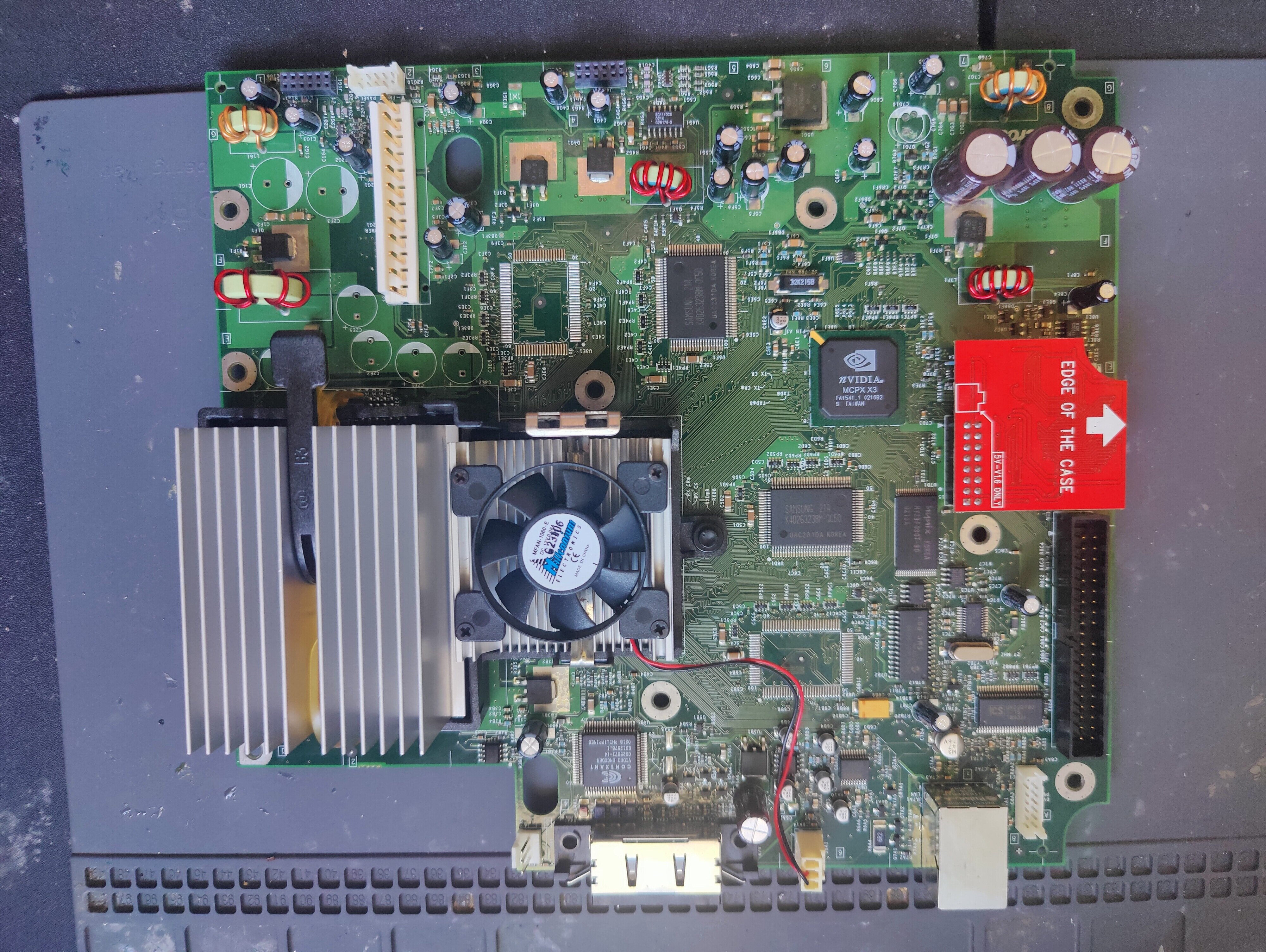

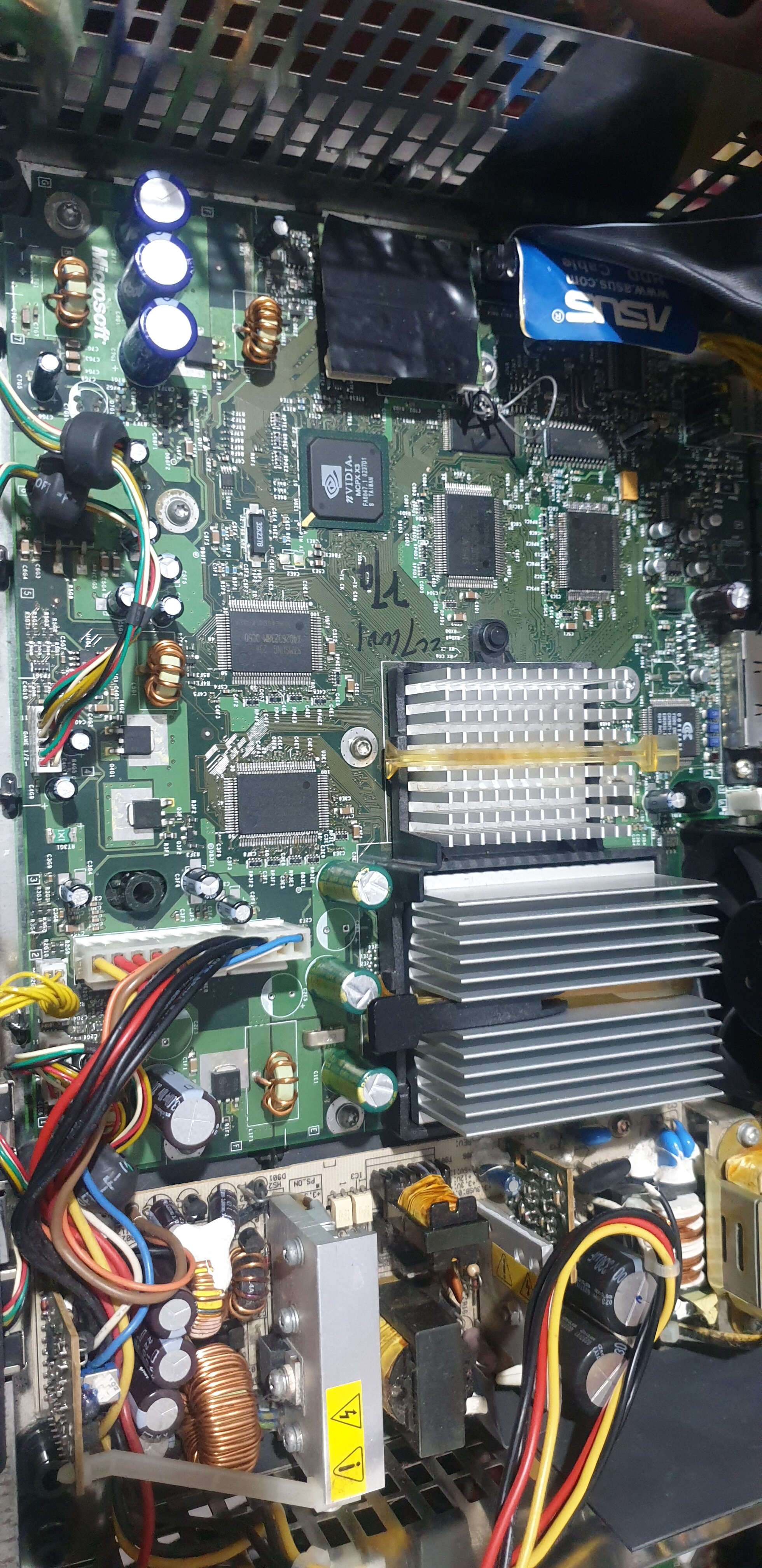

Below is the one inside the latest 1.6 I posted:


Edited by CryogeniumFocus
Link to comment
Share on other sites

Wow, I don't think I've seen one done like that besides @ModzvilleUSA's PCB that acommodates a tinier version of the Pico. That looks like a Xecuter chip though, going by the  "5v-v1.6 only" text.

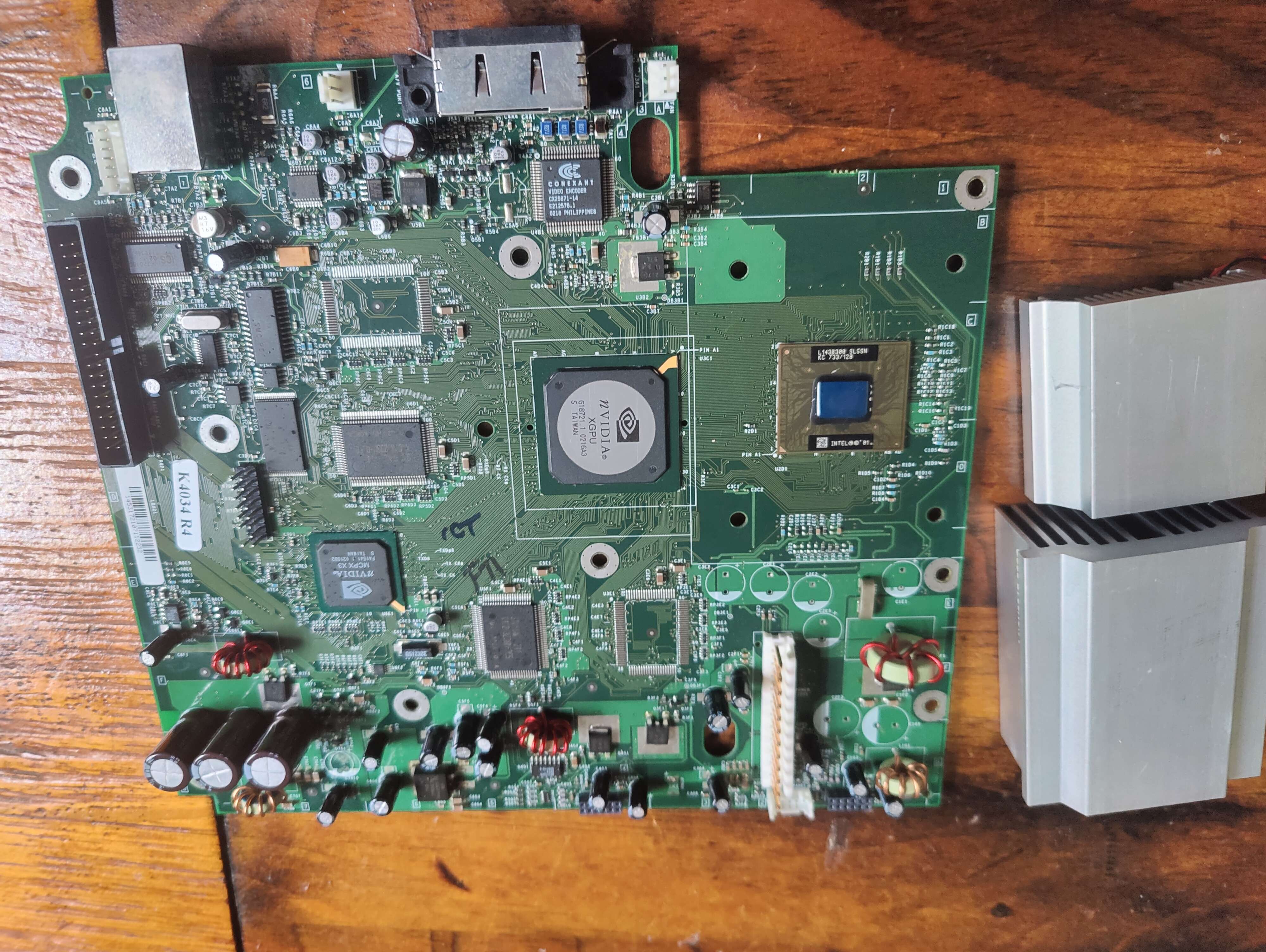

Which brings me to a slight update on my 1.1's board :) - 3300uF caps in place of the 1500s and redid my trace repair w/ Kynar wire. I know, the wiring on the back looks a bit jank, but since it's the underside of the board, not really much to be seen.



Edited by CryogeniumFocus
Link to comment
Share on other sites

Just now, CryogeniumFocus said:

Wow, I don't think I've seen one done like that besides @ModzvilleUSA's PCB that acommodates a tinier version of the Pico. That looks like a Xecuter chip though, going by the  "5v-v1.6 only" text.

Which brings me to a slight update on my 1.1's board :) - 3300uF caps in place of the 1500s and redid my trace repair w/ Kynar wire.

it is an xecuter lol. you're not wrong! I'm not doing a pico install until it's developed a little more.

Link to comment
Share on other sites

  • 2 weeks later...
On 6/25/2024 at 11:53 AM, CryogeniumFocus said:

As it is right now, I don't see Pico being much useful outside 1.6s at the moment. Most of these older units can run off the TSOP, unless you experiment w/ BIOSes, where a modchip like Modxo is welcome.

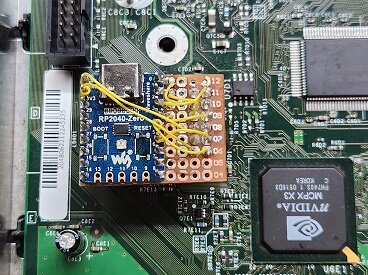

if you can't TSOP, the Modxo is super welcome, I literally knocked one up using junk from previous projects in my garage using perf board and it fired right up on my 1.6. The problem I have had with previous systems is availability and price, but I have a handful of RP2040's from a completely unrelated project and I can get them all day long for less than 10 bucks if I am willing to wait

im probably going to whip up a PCB for this but its running great using "old fart" point to point wiring on a scrap of perf







  • Like 1
Link to comment
Share on other sites
