[XBox Won't Power Up]

19 minutes ago, ScorpionX said:

If it has a green clock cap its a 1.6, that's what I have. I don't know the other color but not green or removed is best on all except for the 1.6 green capacitor version.  forgot where to look to see in your photos I do not know how to tell the other versions but there is a way to. Some searching for it will be required . Wish I could help more I hope its just green then you'll know its a 1.6.

Then you'll be wondering if its a 1.6a or 1.6b though that doesn't really matter. Good luck Ryan

Had a look around and I have a 1.1 Xbox Revision from the No CPU Fan and a Conexant Video Chip.



Checked for my clock cap it was already removed by the previous owner

[XBox Won't Power Up]

Had to link the photos due to file size on this website

https://photos.app.goo.gl/dyxtmw9KBLVLZ28V8

https://photos.app.goo.gl/CS97DGWw43mntrsF6

https://photos.app.goo.gl/DCcHyGn8HgYz8dRM8

https://photos.app.goo.gl/tMcUP6GL5UkCKY3m7

https://photos.app.goo.gl/LpPu9dfmhFPXQ7KB9



I have no idea wtf all that shit is on the powerboard, seems to be like a joint sealer or something it's kinda of over everything. Still have no idea what version Xbox I have.



Edit: I have a revision 1.1



[XBox Won't Power Up]

I'm unsure of what version and what the insides are, I'm having to wait for tool kit off eBay to arrive as I don't have a torx screw set.

[XBox Won't Power Up]

9 minutes ago, SS_Dave said:

By trying to upgrade the hard drive would not cause it to not power on.

What version is it and have you had a look inside? and maybe some pick's of the boards.4



Cheers

SS Dave

Those that can Hard-Mod. Those that can't Soft-Mod.

I didn't try upgrade the HDD I bought it pre upgraded with it already modded he did also give me the original HDD before he upgraded it. Yesterday I used Jrocky5s softmod upgrade tool 1.17v. Since powering off the console and having it unplugged overnight now the power button does not do anything nor the disc drive button.

[XEniumice By Nemesis]

I'm very knew to this scene, but I can just imagine the amount of effort and work that needed to go into this. I might have to buy one of these to repair my Xbox!



Done an excellent job and these look just amazing

[XBox Won't Power Up]

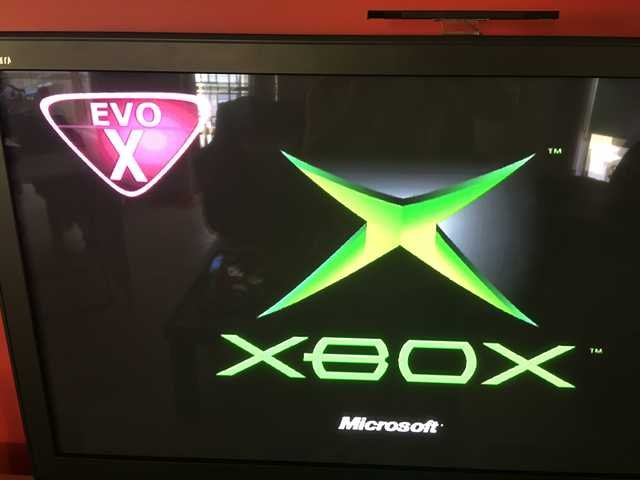

Recently purchased a Xbox pre modded. I thought it was soft modded but upon Futher reading it was hardmodded due to this appearing when booting the console.



I stupidly yesterday tried to FTP rocky5s softmod upgrade thinking my console was softmodded. I'm unsure if it's a TSOP flash or a mod chop waiting for screw drivers to arrive from eBay now.



If it was TSOP flashed is there anything I can do as after running the softmod upgrade from jrocky5 the console won't power on or make a sound to even power on. Nothing happens



I still have the original Xbox HDD the console came with. The guy I bought it off gave it to me.
