[Hdd Fixes for Games]

16 hours ago, phrunt said:

The pure geniuses behind Cerbios have come through with the goods again, my 1.6 Xbox now plays Pirates of the Caribbean fine, prior to installing the latest bios it just scrambled the screen.  Outstanding, solving a two decade long problem.

so they fixed 480p on 1.6?

[Xbmc4gamenrs very slow on startup]

didn't seen above, fragmented files can also make loading slower. So fresh install is equivalent of defraged hdd. You can also do it by zipping for example E drive to retain original time stamps etc. and then extracting zipped E parition to formatted E partition.

also double check ide cable for broken wires.

[XBOX Duke and controller S]

I harvest genuine analog sticks from ps2 controllers mainly from model H - hori manufacturer, because they have high failure rate for circuit membrane. PS2, XBOX and XBOX 360 analog stick mechanism are the same - ALPS.

When using fake analog stick i keep original pots, since fake one have wrong value and makes controls super sensitive. But they feel inferior quality, better go with original ALPS.

Unfortunately i never seen DUKE style plastic knobs for replacement. For S type i use fake - third party plastic knobs or harvest genuine xbox 360, they are quite similar in design.

Never experienced faulty analog trigger.

[Help With Roms Not Being Transferred]

2 hours ago, Bowlsnapper said:

I did too. I was on 5. Went up to 7.something. maybe I should finally fucking buy it and get rid of that evil pop-up that only comes up when you try to use your mouse to open something or grab it to drag it. I have ALWAYS hated that. Lol

go open source - 7zip

[OpenLara XBOX Tomb Raider 2 and 3, looking for working copies....... SOLVED]

open lara properly works only on tr1. tr - 2 and 3 works too, but have game breaking bugs.

[Ring of Light mod too bright... Any ideas how to dim it slightly??? FIXED :)]

25 minutes ago, nikeymikey said:

Got it....

looks like linear voltage regulator , SOT-89-5 stamping is nonsense

measure output voltage

[Ring of Light mod too bright... Any ideas how to dim it slightly??? FIXED :)]

2 minutes ago, nikeymikey said:

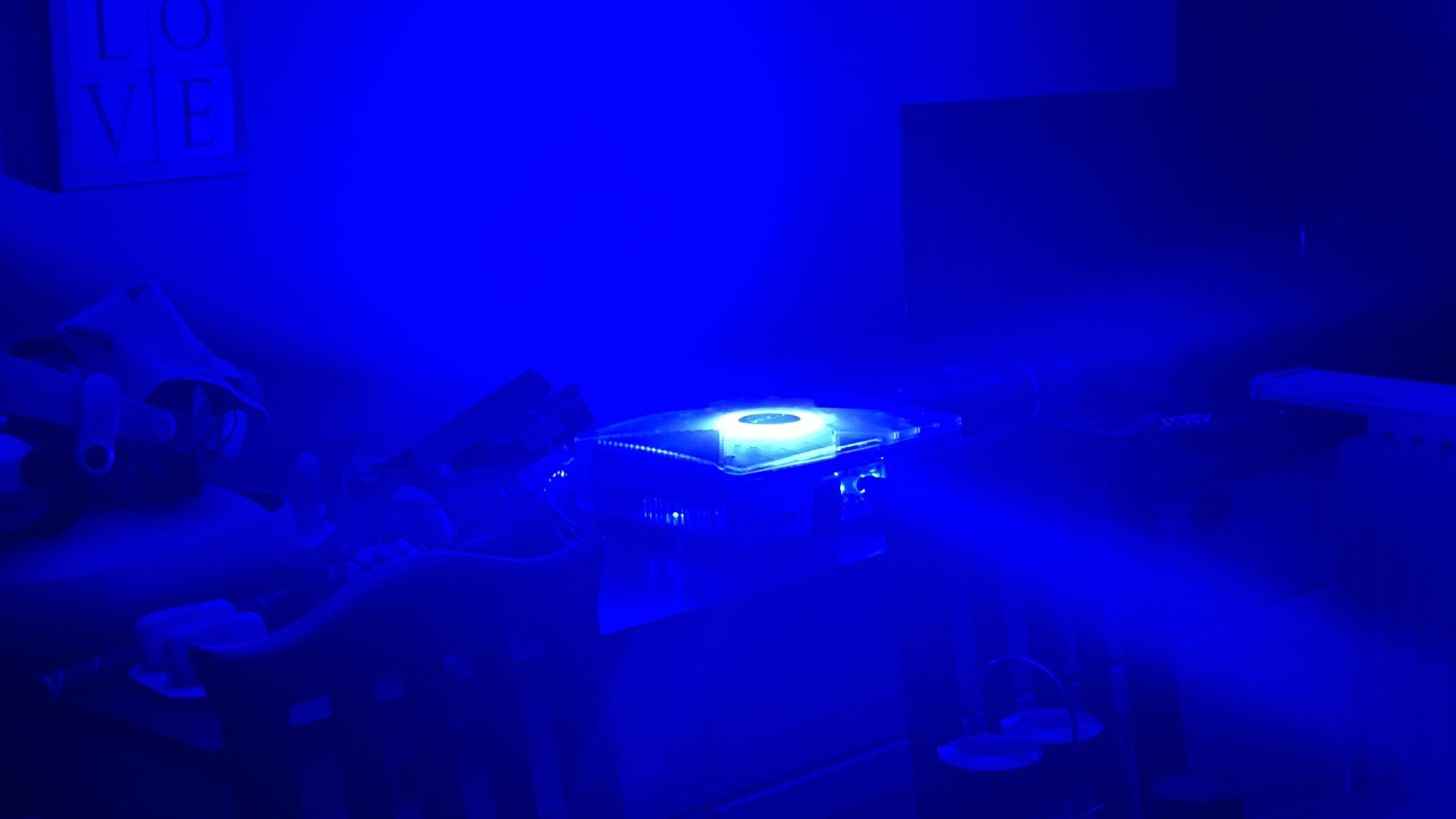

This is it in a completely unlit room.....

not bright at all

[Ring of Light mod too bright... Any ideas how to dim it slightly??? FIXED :)]

4 minutes ago, nikeymikey said:

The wires are currently wired to a molex plug and daisy chained to the spare molex output on a Startech SATA adapter.

Would removing the little black box completely lower the voltage? Is that little box upping it to 24v??

The amazon listing says they support 12/24v...

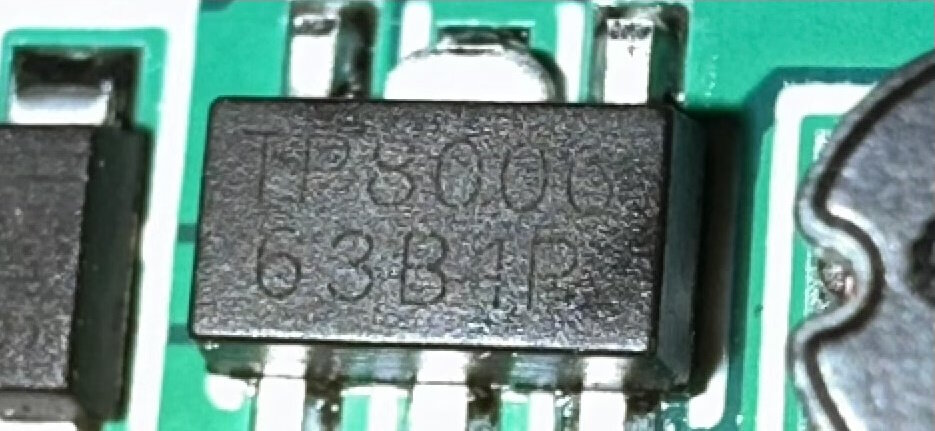

can you write down what is stamped on u1 component.

[Ring of Light mod too bright... Any ideas how to dim it slightly??? FIXED :)]

Dont look at it :DD

replacing u1 with something that outputs less voltage, or adding big ass resistor to output - less efficient . Or buying  entirely different dc-dc converter. or soldering led directly to the MB to limited selection of voltage.

[Fan power draw]

don't worry about it.

It shows fan's maximum rated power usage = max fan speed.





[Could a dodgy controller cable cause a short that causes sudden power down of console??]

21 minutes ago, nikeymikey said:

Running Cerbios, but seeing as I have had the same random power down while in PrometheOS menus (which runs before Cerbios is even loaded) I think we can rule out the bios being the issue.

not sure about the boot sequence of xbox since it loads everything from bios rom, but could be a bug in the bios image itself. try downgrading.



[Could a dodgy controller cable cause a short that causes sudden power down of console??]



bios?

[Help with Xbox and dead HDD.]

If you have means to connect old HDD to pc, then use FATxplorer. I make zip files for each partition so it would retain timestamps and easier to store in HDD in case if backup needed.

Left clicking mounted partition's icon and selecting add to archive. Neat and lazy instead of using robocopy - the only program that retains timestamps, but its command line, very noob unfriendly.

So you archive c and e partitions, those are main, other partition if needed.

After that you format new HDD with fatxplorer, mount partitions and extract file from C.zip to C partition, etc.

And dont forget to lock new HDD after job is done.

[Having problem loading some games from HDD]

3 minutes ago, James Bond said:

Thanks very much, will try this

use XDVDMulleter v10.2beta to extract game files

[Audio using a monitor with no audio port/speakers (HDMI)]

2 minutes ago, Games_Lover said:

Yeah...will have to look into those CRT characteristics i know nothing about.

Its really fast now. Feels strange; just now i was playing mgs2 substance and Raiden is flying.

My only beef is, even after changing display mode on monitor to 16:9, theres still small black bars on each side. I wonder if theres anthing a can do about it? I suppose widescreen patch?

I reckon i should avoid 1080i and stick to 720p right? And btw the games that support widescreen, do i have to enable ingame on a menu, or they boot straight into widescreen mode? (softmoded, widesreen enabled in settings)

Thanks a lot. Cheers

many xbox games support widescreen and there are patches.

set widescreen in dashboard.

https://consolemods.org/wiki/Xbox:Games_with_Alternate_Display_Modes

http://ps2wide.net/xbox.html

[Having problem loading some games from HDD]

4 minutes ago, James Bond said:



Thanks for your reply, but how can it be a bad rip and it gave me the same results when I downloaded the game from VIMM'S LAYER which all its games are CRC verfied.

The PAL version works ok for me, the problem is with the NTSC version, and I mentiomed that my XBOX is PAL because I suspect that it might be part of the problem that some of the NTSC game might not run on PAL system, because it is also gave the same error when tried on PAL XBOX 360, but worked perfectly fine on the NTSC XBOX 360.

And the other games as well I downloaded them again from Vimm's layer with the same issues.

Regarding the region specific files, can you explain more to me what do you mean by this?

Using video files from PAL version on the NTSC version, is that what you mean ?

many warez sites uses same bad rip for desert storm 2.

https://archive.org/download/microsoft_xbox_c_part2

pal version has non interlaced cutscenes. ntsc have sharper cutscenes, but interlace which looks like crap. both versions work on both regions. so go for pal.





[Audio using a monitor with no audio port/speakers (HDMI)]

1 hour ago, Games_Lover said:

I received the hdmi adapter today. 480p on a nice monitor makes all the difference in the world...looks great, and games feel so much faster on my 1ms 100hz monitor. I heard CRT TVs had less input lag..? Games feel faster on my lcd definitely. Now i just need audio. Cheers

Plasma is good alternative for CRT, in terms of image quality and clarity. LCD PC monitors are good with input lag.

CRT need to be calibrated and perfect image is not possible. mainly geometry and convergence is the problem.

Plasma, not sure if they have huge input lag.

Plasma will beat any LCD tv to this day, QLED, mini led, you name it.

[Having problem loading some games from HDD]

1. Bad rip, PAL version works in NTSC mode with no problems.

2. Could be bad rip or region mismatch

3. Could be bad rip or region mismatch

4. Bad rip

007 nightfire is region specific, you can make it to work both NTSC and PAL by injecting missing videos from other region and injecting missing region specific files to VIV files so drive sections wont freeze. I think same is for 007 everything or nothing, just missing video files.

[Running Cerbios BFM on a rocky5 softmod console??]

boot times will be longers

since it will need to boot og bios, softmod and then cerbio bios.

softmod supports xiso mounting, but i had significally inferior IGR boot times. So i use it on few games that cannot be patched against long file names by brute forcing hexedit.

Not sure about CCI what penalty is for IGR.

[Running Cerbios BFM on a rocky5 softmod console??]

why he wants cerbios anyways?

[Can't access network settings]

crt master race



how do you acess ms dashboard? possibly c partition doesnt have ms dashboard files. using file manager look for xboxdash.xbe in c partition

[Audio using a monitor with no audio port/speakers (HDMI)]

https://pt.aliexpress.com/item/1005006629105298.html

this looks promising

[Audio using a monitor with no audio port/speakers (HDMI)]

10 hours ago, Bowlsnapper said:

15 bucks, for an analog solution only. Can be fed by the HDMI extractor's analog out. I have one of these and they sound pretty damn good for 14 bucks.

https://www.amazon.com/Hiprorca-Headphone-Amplifier-Two-Stage-MobilePhone/dp/B0CHFQXNLD/ref=sr_1_10?crid=SKEEYV1OPSGA&dib=eyJ2IjoiMSJ9.Y6-UdigFxwUQtHAvc-5RpAE0sPUY_wbXtEMFH3y-J4XLirNd2oO8_TecHAc54SDW-8Ja8xONqh2wL1BgxNTY6MQNytkfOMlY2591pNo5lWVYxislSVozl1rtqur0SuwDYROI5LX9_nfxUQ20oMFZNCk0T5YJSRl0qdah_xxCo5Q3ZUlxJxN0zeIJ-EFIlk9v68Mel70IZZ_GoGlhAbxEInW0jgeP_f2HOP_DZz1-n6Y.MmoCkVmlhHYn9NhS_42bzog5dsI6bOm5JbmnylKrtss&dib_tag=se&keywords=headphone+amp+spdif&qid=1716055678&sprefix=headphone+amp+spdif%2Caps%2C191&sr=8-10

DAC/headphone amp solution:https://www.amazon.com/PROZOR-Digital-Converter-Supports-control/dp/B06XDLCHY7/ref=sr_1_8?crid=SKEEYV1OPSGA&dib=eyJ2IjoiMSJ9.Y6-UdigFxwUQtHAvc-5RpAE0sPUY_wbXtEMFH3y-J4XLirNd2oO8_TecHAc54SDW-8Ja8xONqh2wL1BgxNTY6MQNytkfOMlY2591pNo5lWVYxislSVozl1rtqur0SuwDYROI5LX9_nfxUQ20oMFZNCk0T5YJSRl0qdah_xxCo5Q3ZUlxJxN0zeIJ-EFIlk9v68Mel70IZZ_GoGlhAbxEInW0jgeP_f2HOP_DZz1-n6Y.MmoCkVmlhHYn9NhS_42bzog5dsI6bOm5JbmnylKrtss&dib_tag=se&keywords=headphone%2Bamp%2Bspdif&qid=1716055678&sprefix=headphone%2Bamp%2Bspdif%2Caps%2C191&sr=8-8&th=1

Both of these sound perfectly fine. I can attest to that. Cheaper than most options.

https://www.amazon.com/PROZOR-Digital-Converter-Supports-control/dp/B06XDLCHY7/ref=sr_1_8?crid=SKEEYV1OPSGA&dib=eyJ2IjoiMSJ9.Y6-UdigFxwUQtHAvc-5RpAE0sPUY_wbXtEMFH3y-J4XLirNd2oO8_TecHAc54SDW-8Ja8xONqh2wL1BgxNTY6MQNytkfOMlY2591pNo5lWVYxislSVozl1rtqur0SuwDYROI5LX9_nfxUQ20oMFZNCk0T5YJSRl0qdah_xxCo5Q3ZUlxJxN0zeIJ-EFIlk9v68Mel70IZZ_GoGlhAbxEInW0jgeP_f2HOP_DZz1-n6Y.MmoCkVmlhHYn9NhS_42bzog5dsI6bOm5JbmnylKrtss&dib_tag=se&keywords=headphone%2Bamp%2Bspdif&qid=1716055678&sprefix=headphone%2Bamp%2Bspdif%2Caps%2C191&sr=8-8&th=1

https://www.amazon.com/PROZOR-Digital-Converter-Supports-control/dp/B06XDLCHY7

guys, remove reference links :DDD

9 hours ago, Games_Lover said:

These two look fine i suppose.

Just over 10€, so, free shipping:

(edit: not sure if this one works)

https://pt.aliexpress.com/item/1005005657063305.html

This one has lots of good feedback, free shipping, 13€:

https://pt.aliexpress.com/item/1005005630394541.html

I live in Portugal. It takes about a week to arrive from past experience. Never used amazon, but i guess i could try later, there is always a first time..

Hey sorry im a noob but isnt there a single solution avaible perhaps, extractor and amp combined? Now im confused..

Cheers

https://pt.aliexpress.com/item/1005005630394541.html?spm=a2g0o.productlist.main.1.5cc5cFvqcFvqdq&algo_pvid=5a7989b0-8b27-4889-a6e9-9349ea47b85a&algo_exp_id=5a7989b0-8b27-4889-a6e9-9349ea47b85a-0&pdp_npi=4%40dis!EUR!26.45!13.22!!!202.85!101.42!%402101c5b217160592992846698e0ce7!12000033815573985!sea!PT!756675134!&curPageLogUid=ZkjSWyviQ37H&utparam-url=scene%3Asearch|query_from%3A

https://pt.aliexpress.com/item/1005005630394541.html



[System powers on only by eject button. Power button does nothing]

i had 1.6 with the same problem, turns out it was a faulty 10k resistor

https://web.archive.org/web/20190221151211/http://diy.sickmods.net/Tutorials/Xbox1/Power-Eject_Pinouts/

[Off Brand SATA Adapters]

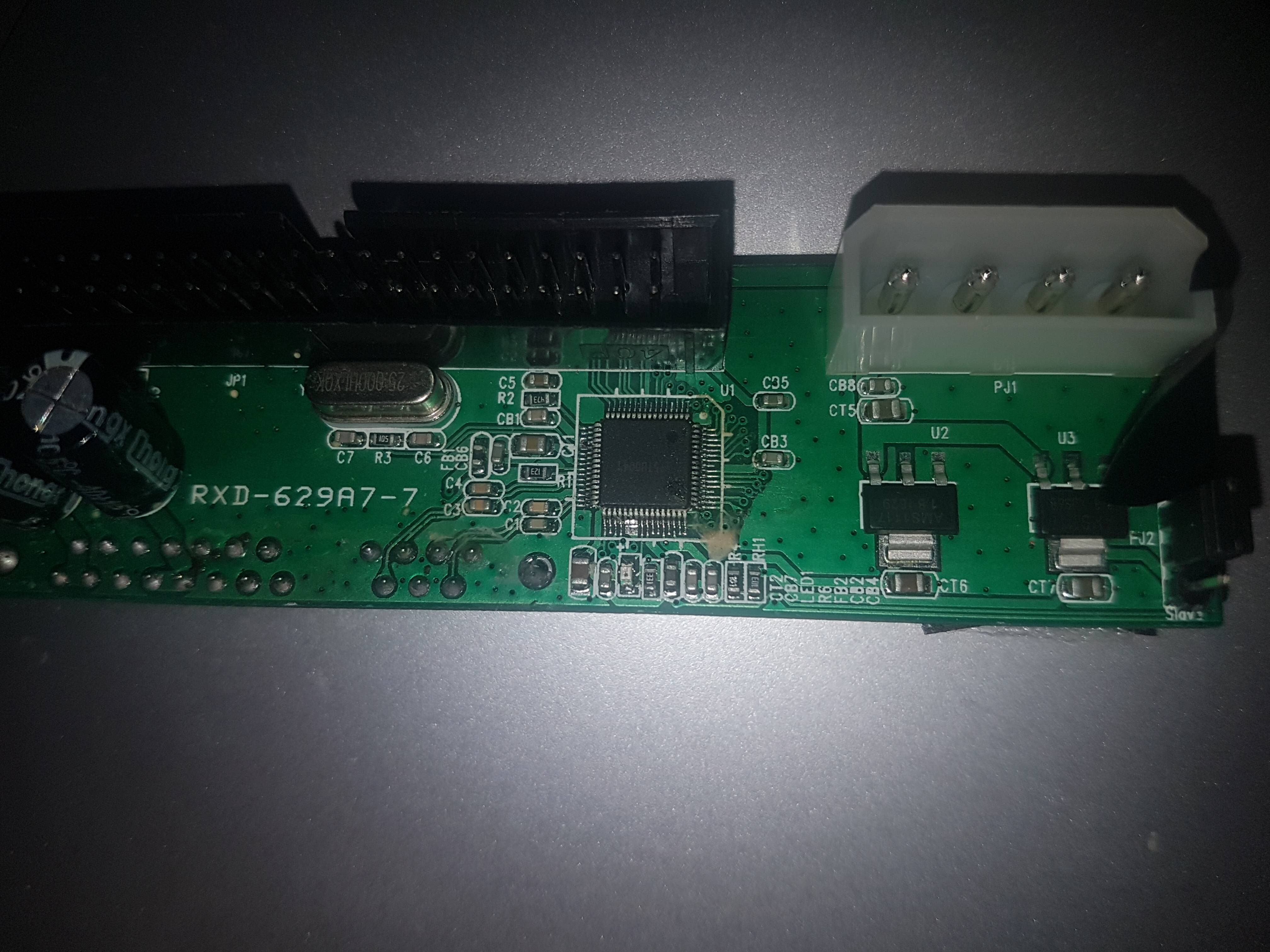

12 hours ago, Raidernick said:

That green china adapter is fine as long as you put a 0603 100ohm resistor at R4. Doing that will give instant boot times and allow the adapter to run in UDMA6 mode at near UDMA6 speeds(around 90-95% speed). It's not as good as startech, but close enough at a small fraction of the price. Also, the startech chipset does have that incompatibility with newer cerbios versions, samsung b dvd drives and hdd's over 1tb in size(this may be hit or miss for some people).

my adapter has it, interesting
