John7272

Modchip Lcd Wiring Schematics

Recommended Posts

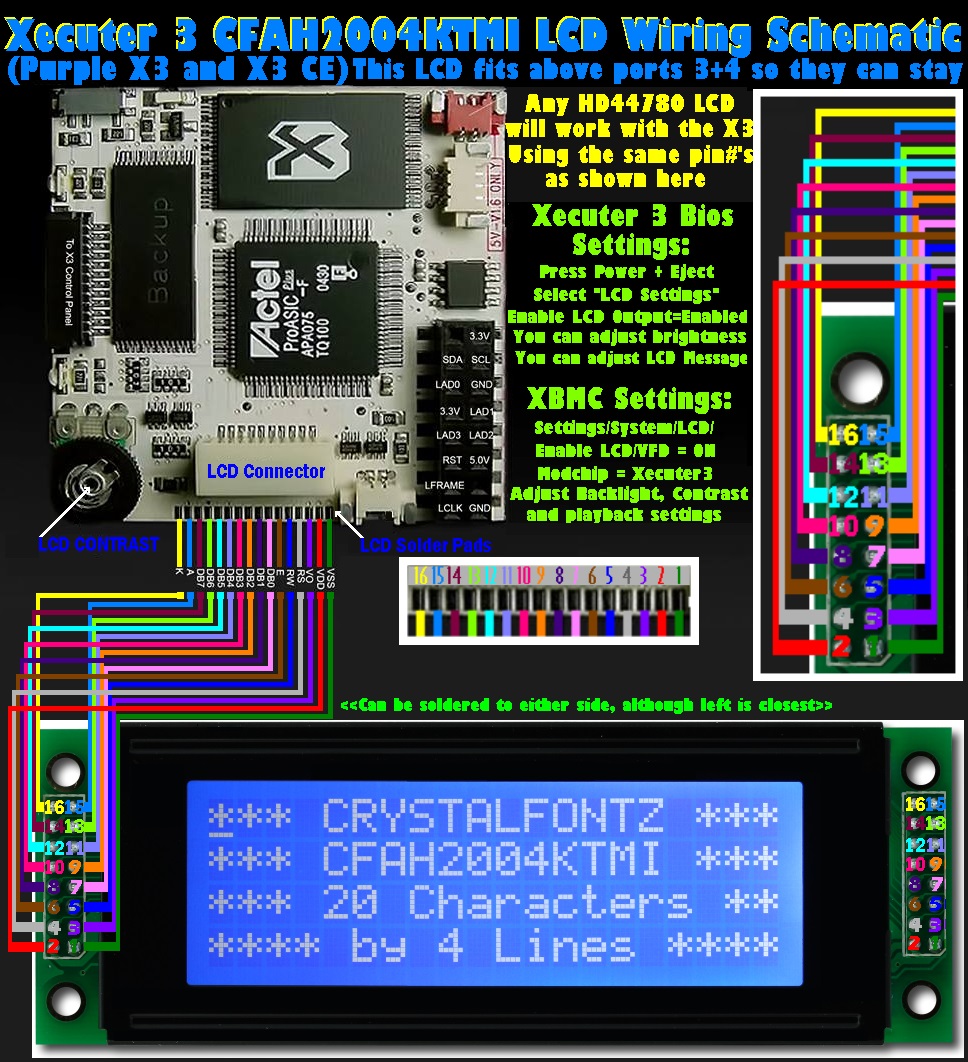

My start at Collecting the info on LCD installation utilizing different modchips and other means. These take me hours to create so I hope they help a few people.5c27a33fca7d6_Xecuter3CFAH2004KTMILCDWiringSchematic.thumb.jpg.951eac3e5fdf3d4e49ad8767fa589c8f.jpg









Edited by John7272

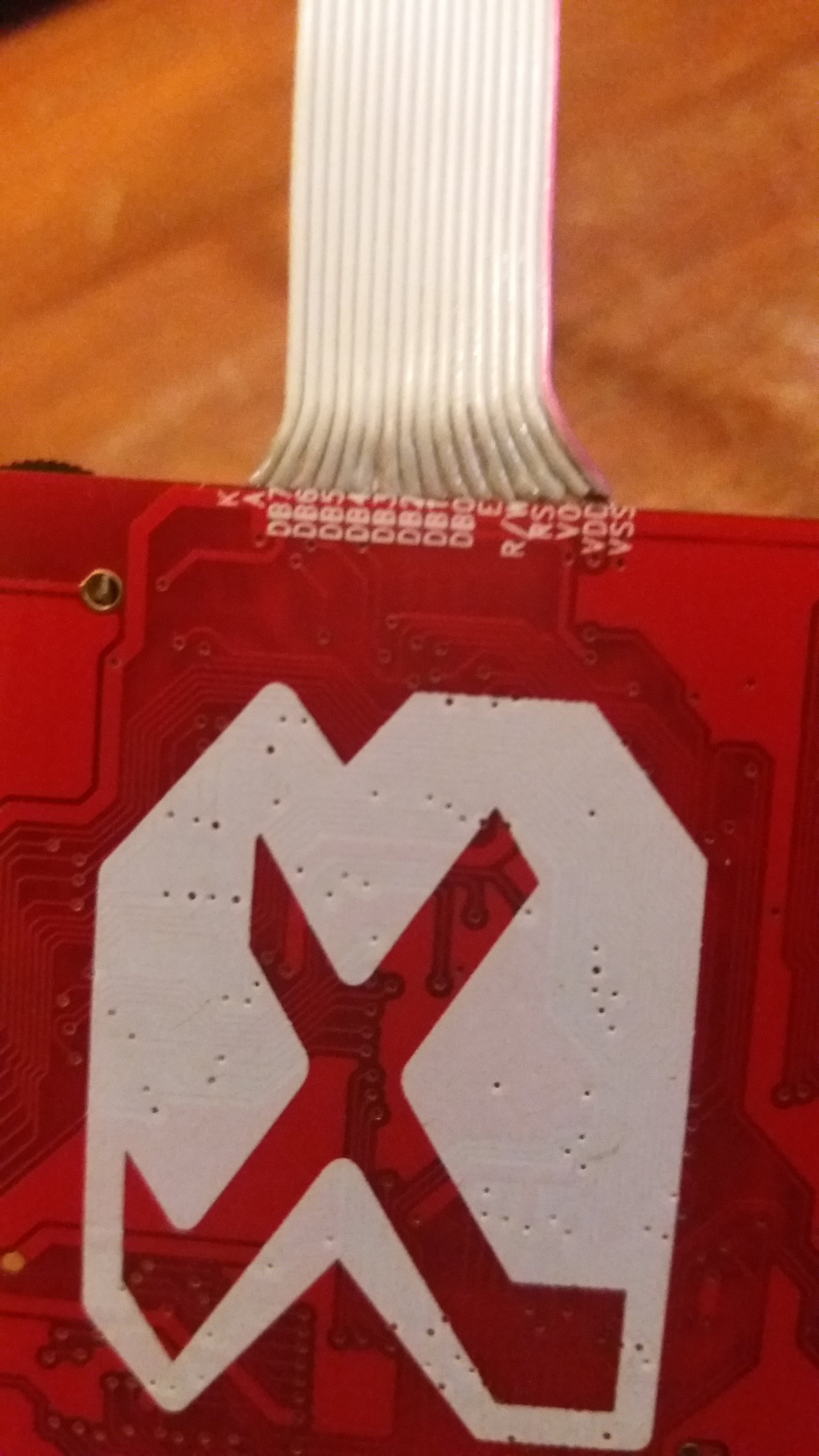

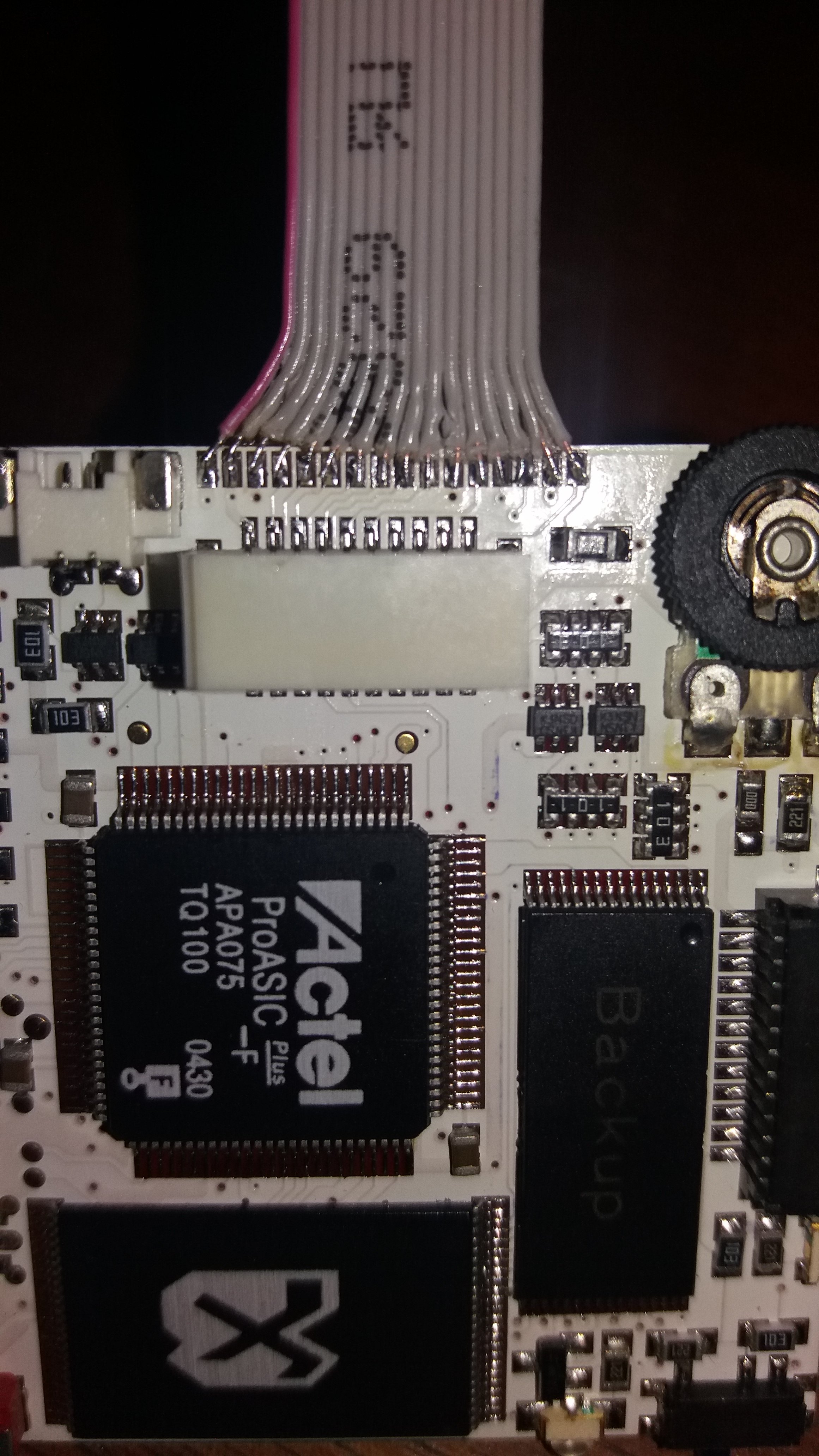

Added pictures of soldered chip.
  • Like 3
  • Thanks 1

Share this post


Link to post
Share on other sites

I will sooner or later, my work schedule for January is jam-packed. The Xenium mod chips require a separate circuit board to translate info to the LCD.. It is called a spi2par, they are very rare. The one I have is the only one I have seen anywhere other than the website that used to sell them. An LCD with SPI protocol can be used as well, but they are expensive and hard to find from what I am told. I never really looked into SPI LCD's because I have the spi2par. If anyone has information please share it.

Please login or register to see this link.

Edited by John7272

Share this post


Link to post
Share on other sites
  1. something like the adafruit backpack may work for the SPI interface Please login or register to see this link.   I know they can be used on 20x4 lcds

Share this post


Link to post
Share on other sites
