Which Aladin Version Is This?

[Spaceman]

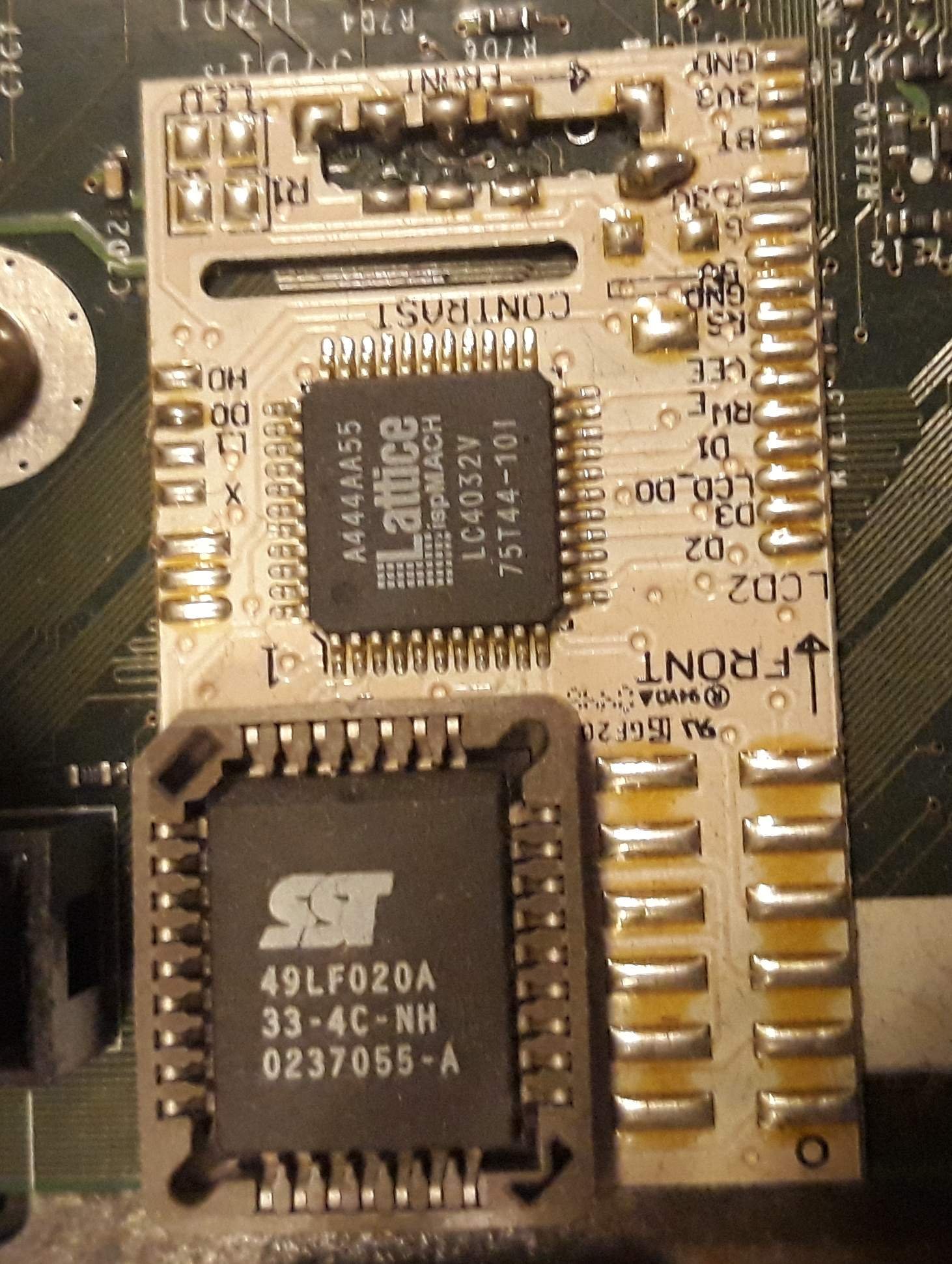

Hello everyone, I opened up an original Xbox v1.6 i acquired to check the state of the capacitors and noticed it was hard modded with a chip. I have always done soft mods and I am a noob when it comes to the hard mod world. I did some research with my friend google and worked out that it is an Aladdin 4032   (I think) just not sure what version as the only ones i could find had a red PCB. Just wondering if anyone has any details and is it worth reflashing the Bios or just putting in a newer version.  Thanks in advance

Edited June 12, 2020 by Spaceman

[SS_Dave]

It is a XenoChip  so a white version of an Aladdin chip

I takes a 256kb bios.



Cheers

SS Dave

Soft modding is like masturbating, It gets the job done but it's nothing like the real thing.


[SS_Dave]

I would resolder this point as it looks suspect.



Cheers

SS Dave

Soft modding is like masturbating, It gets the job done but it's nothing like the real thing.


[Spaceman]

 Thank you for the quick reply SS_Dave.

I will warm soldering iron up in the morning

Edited June 12, 2020 by Spaceman

[Spaceman]

Thank you again SS_Dave.

 With your help I have found out it is called a "AXT32: Xenochip Lite".

[SS_Dave]

2 minutes ago, Spaceman said:

Thank you again SS_Dave.

 With your help I have found out it is called a "AXT32: Xenochip Lite".

That's ok we are all here to help..



This is the list I have

Modchip Identification Chart.xlsx - Sheet1.pdf





Cheers

SS Dave

Soft modding is like masturbating, It gets the job done but it's nothing like the real thing.



[Spaceman]

Hi SS_Dave

After you pointed me in the right direction i found this site (https://translate.google.com/translate?hl=en&sl=auto&tl=en&u=https%3A%2F%2Fhtmh.de%2Fforum%2Findex.php%3Fthread%2F1697-mod-chips-aktuell%2F) i got google to translate from German for me.

Edited June 12, 2020 by Spaceman
forgot to add name of helper

[BloodyThunderX]

Are there any notable differences with how this chip works compared to the standard red Aladdin chip? Or is it just a clone/older variant?

[KaosEngineer]

It's the original the red ones are the newer clones
