Og XBox V1.1 With XBit (Evox 3.6)

Recommended Posts

Hi all,

I just bought an OG Xbox v1.1 with Xbit modchip (Evox 3.6 bios is loaded). I still have to open it up for cleaning and checking if the clock capacitor is still in place.

Up until now, I had only softmodded my other Xbox.

So, what should I do to this one? Can I update the modchip's bios with Hexen Tools, or should I use the old updater tool for Xbit?

I guess I could still update the dashboard using Hexen tools, right?

I'd really appreciate your help! :)





Edited by jlb

Share this post


Link to post
Share on other sites

Looks like a very interesting board.  Did you Xbox come with the external board?  Do you see DIP switches anywhere?  Lots of room for experimentation on that board.

Please login or register to see this link.

I'd try to flash it with the HeXEn disc or with EvolutionX dash (using IND-BIOS 5004.67).  But, move right into cleaning the Xbox, removing the clock cap, replacing the thermal paste.

Share this post


Link to post
Share on other sites

You will have to use the X-bit PC software to flash the chip.  From what I understand about this modchip, it cannot be flashed using Evoxdash or other Xbox flashing apps.  Access to write to the flash memory chip is only available through the USB port via the X-Bit's PC software.

Share this post


Link to post
Share on other sites


Yes, I have some cooler Master paste that I'll also be using.

There's the external board also there with the DIP switches.

Edited by jlb
Missed quoted post.

Share this post


Link to post
Share on other sites
3 minutes ago, KaosEngineer said:

You will have to use the X-bit PC software to flash the chip.  From what I understand about this modchip, it cannot be flashed using Evoxdash or other Xbox flashing apps.  Access to write to the flash memory chip is only available through the USB port via the X-Bit's PC software.

I already have the XP version of it.

Will try to use it with my Win10 box, otherwise I'll have to download a Win XP virtual machine to try it out.

Share this post


Link to post
Share on other sites

Found some time last weekend to clean up the board, remove the clock capacitor and put new thermal paste in.

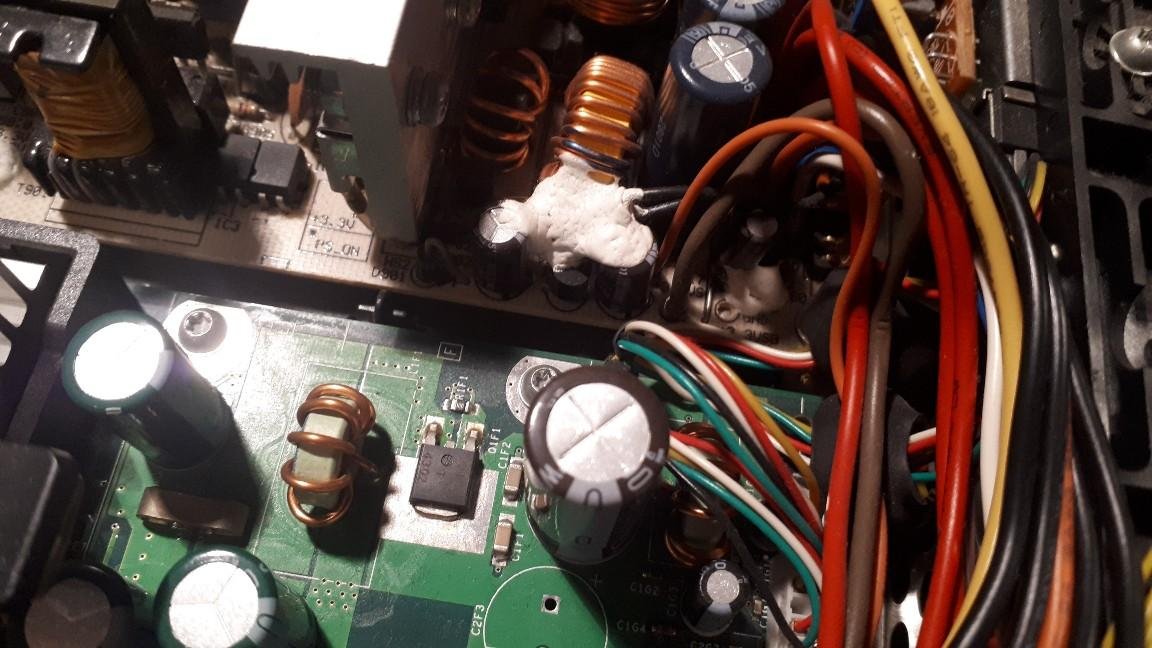

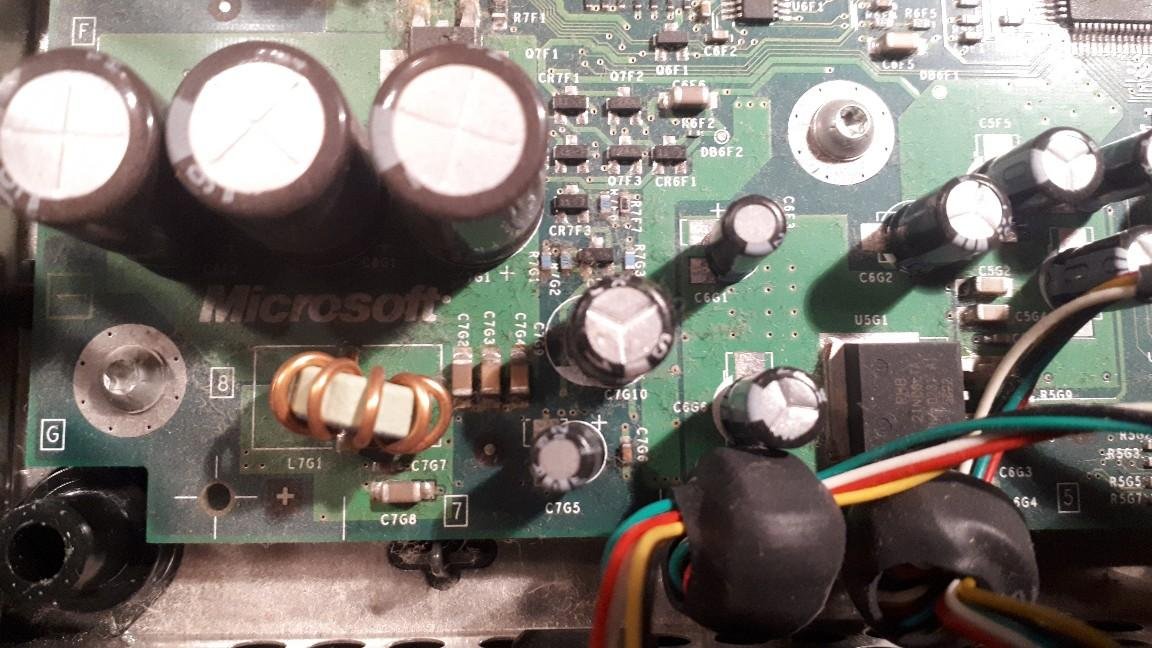

So, the clock capacitor wasn't leaking. The other capacitors seemed to be in good shape, at least for a layman. No bulging, etc.

I removed it anyway, cleaned the board with ethanol, new thermal paste and called it a day. Processor temperatures dropped by 3ºC.

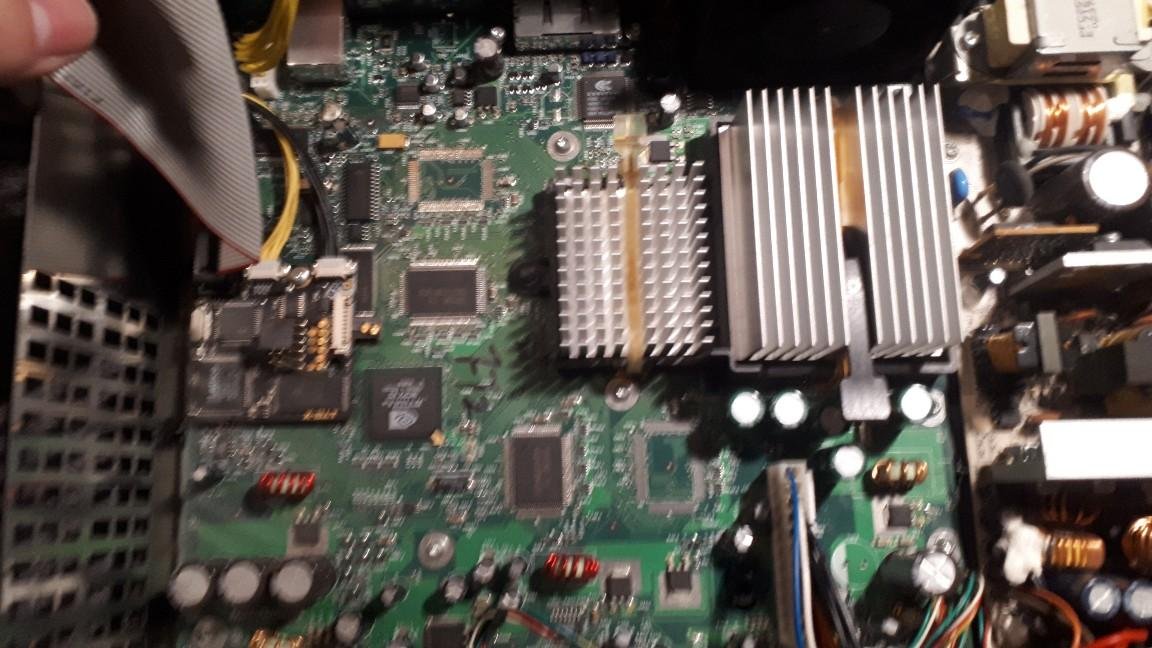

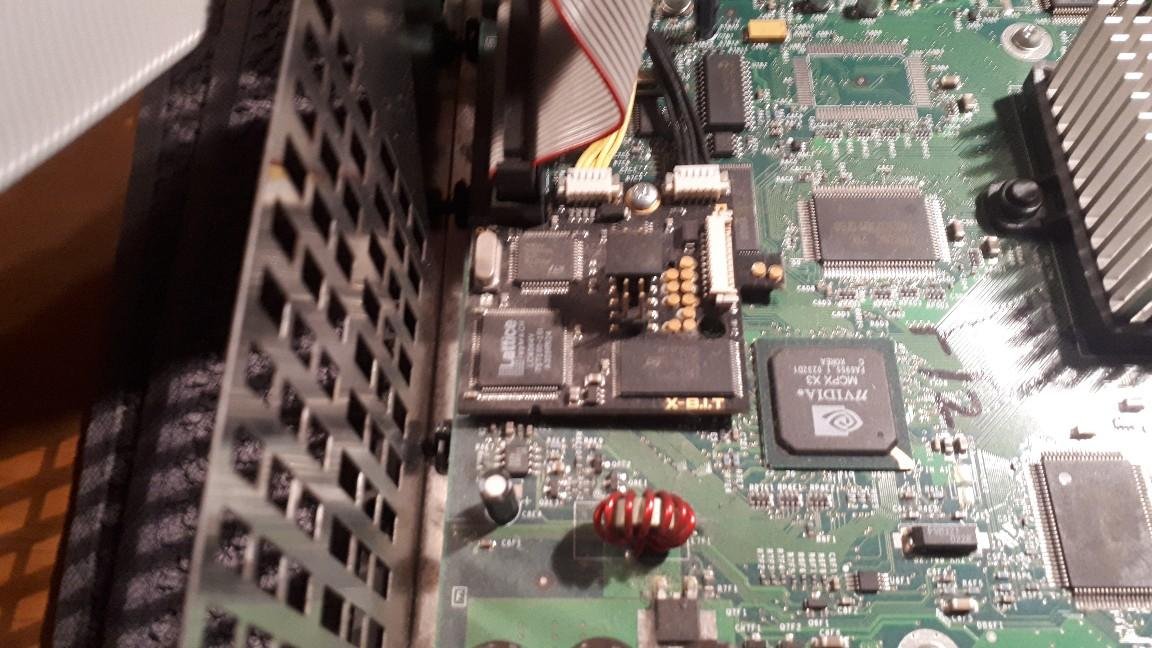

Here's some fotos I took during the process.



Please login or register to see this attachment.

Please login or register to see this attachment.

Please login or register to see this attachment.

Please login or register to see this attachment.

Please login or register to see this attachment.

Please login or register to see this attachment.

Please login or register to see this attachment.

Edited by jlb

Share this post


Link to post
Share on other sites
