Cian Cunningham

High Quality Diy Component Cable

Recommended Posts

Here is a step by step tutorial for making a high quality component cable using an Xbox 360 component cable and a standard original Xbox Composite AV cable that pretty much everyone will have. I was looking for an original Xbox component cable recently and my options were a cheap Chinese non brand component cable, a monster cable or an official HD kit. The latter being crazy expensive nowadays. Since I have a background in electronics I thought why not make one from a 360 cable if a standard AV cable has all the pins present but not wired. I did a quick Google and I am not the first to have done this but thought I'd throw up this step by step for anyone who isn't afraid of some small soldering. You could just splice a 360 component cable onto a Chinese component cable but this way you have a pretty much official cable that is very high quality..

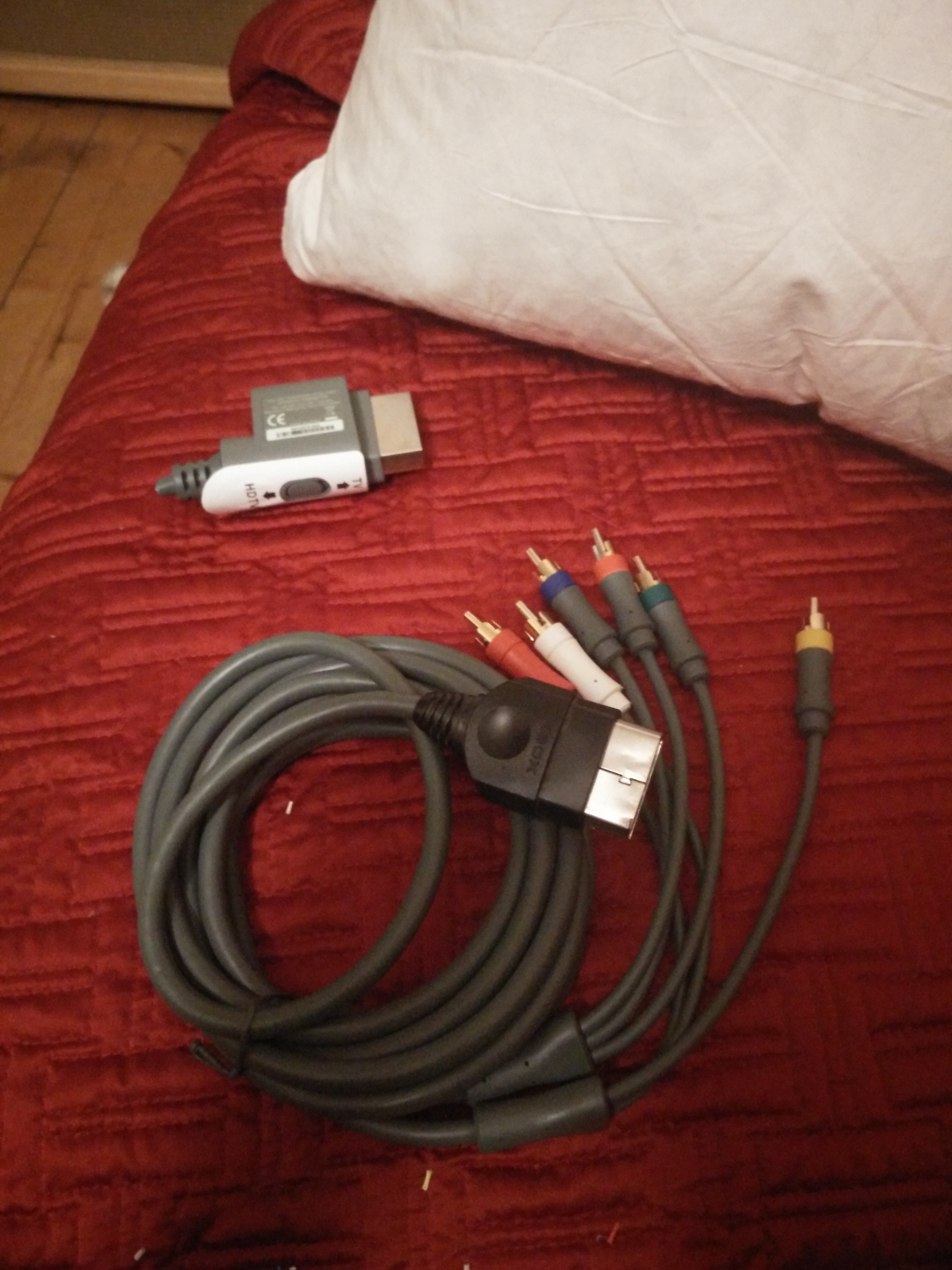

Here goes. Get yourself a 360 component cable and a standard AV cable with the 3 RCA plugs, red, white and yellow.

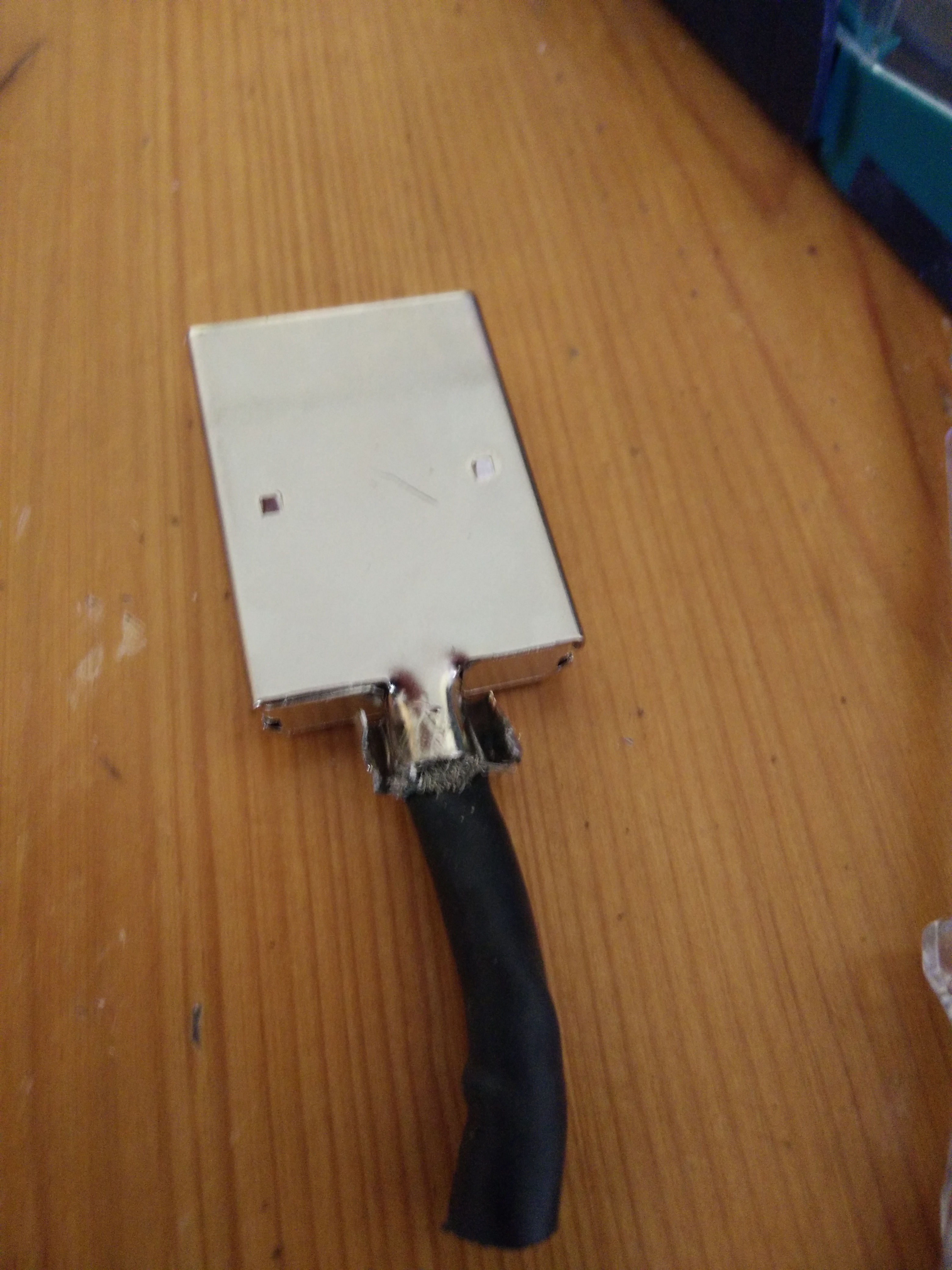

Cut the head off your original Xbox AV cable.


Take a hair dryer to it now to make the plastic sleeve malleable and remove the sleeve from around the socket. Use a screwdriver to help pry it off if needs be. It should come pretty easy but don't be too rough as we want to get it back on at the end.

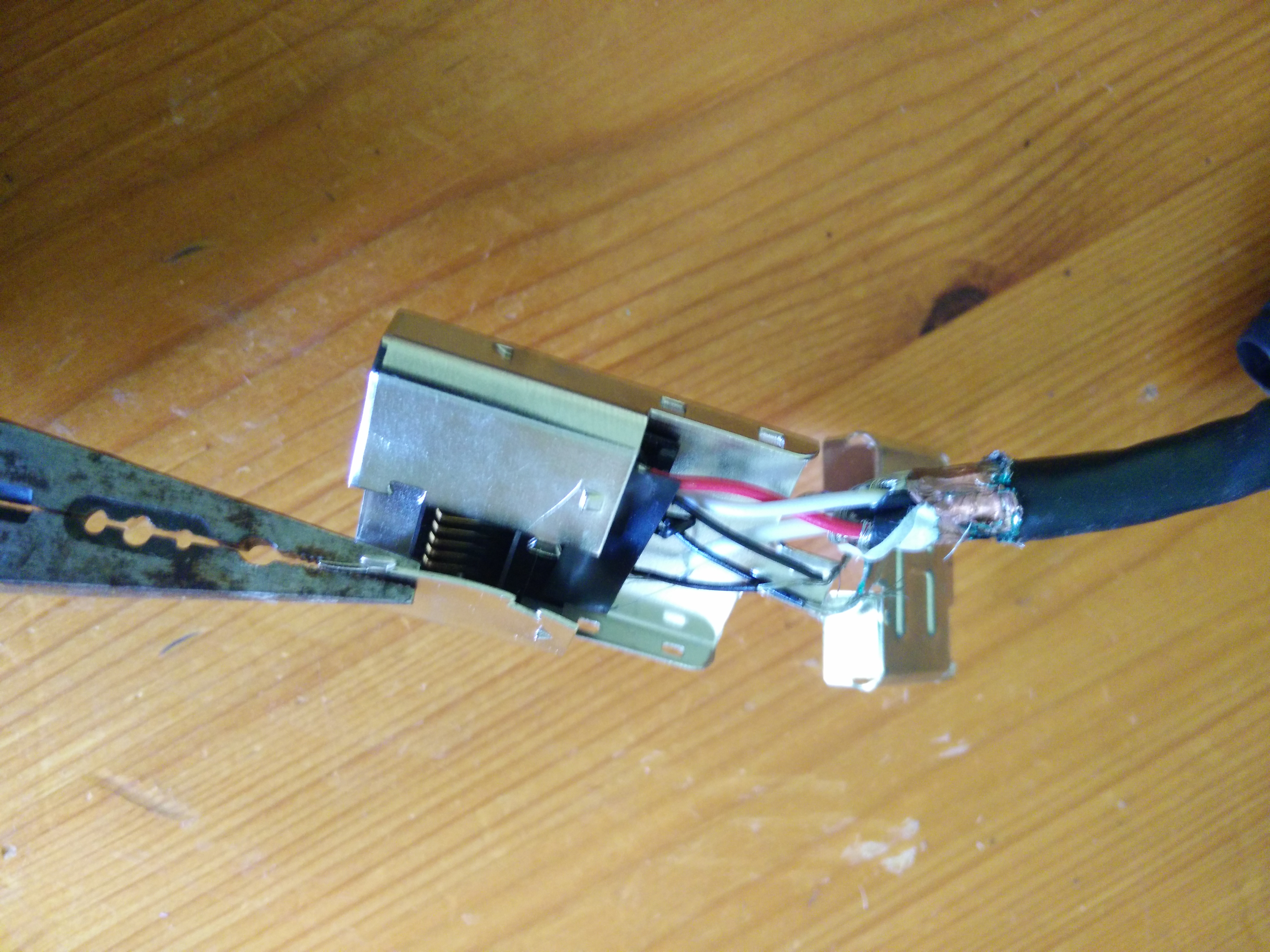

Now loosen off the clasps around the cable by prying them out with a screwdriver and then with a long nose pliers if needed. Again don't go too mad as we will need to squeeze these back on at the end.

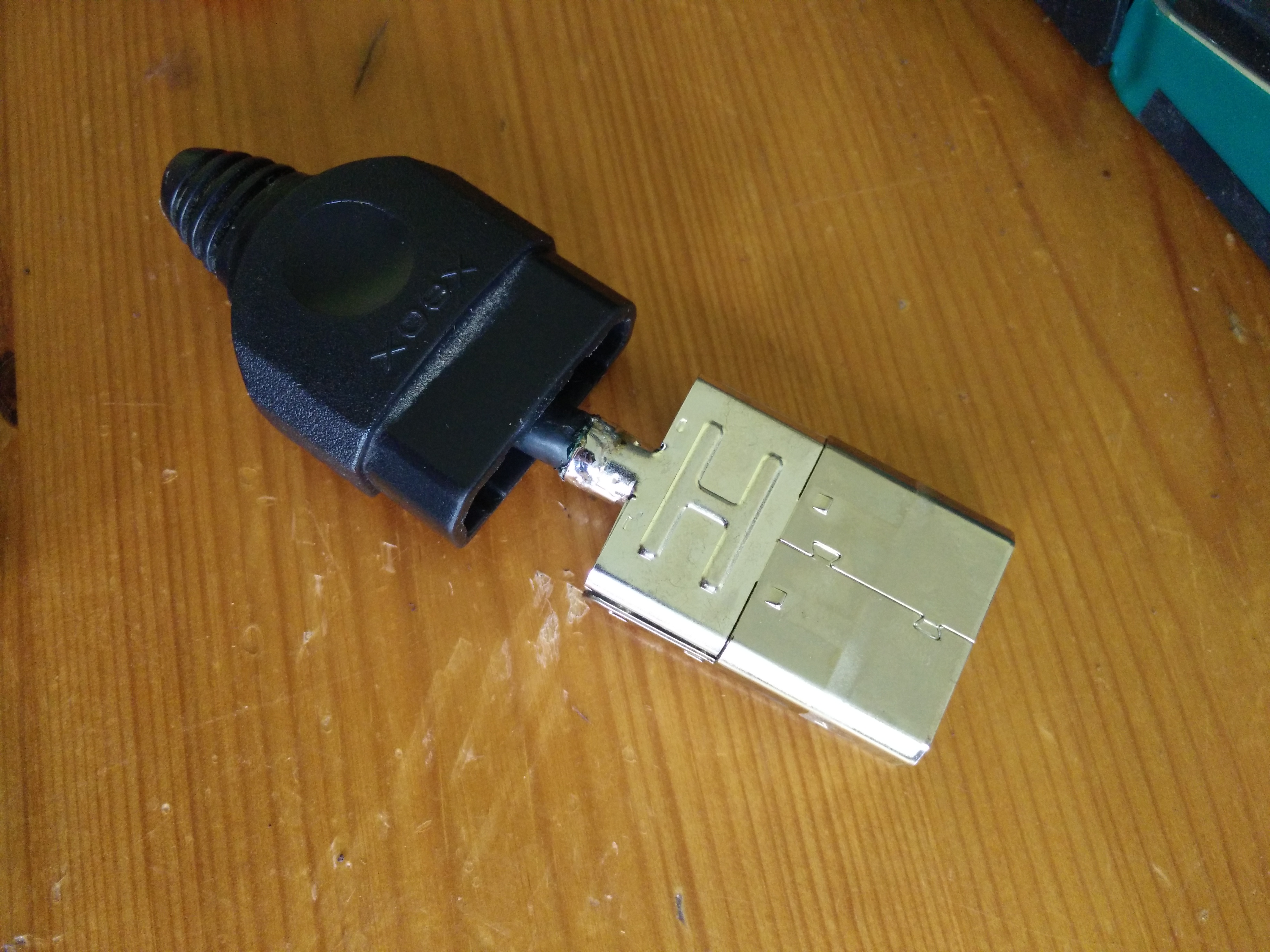

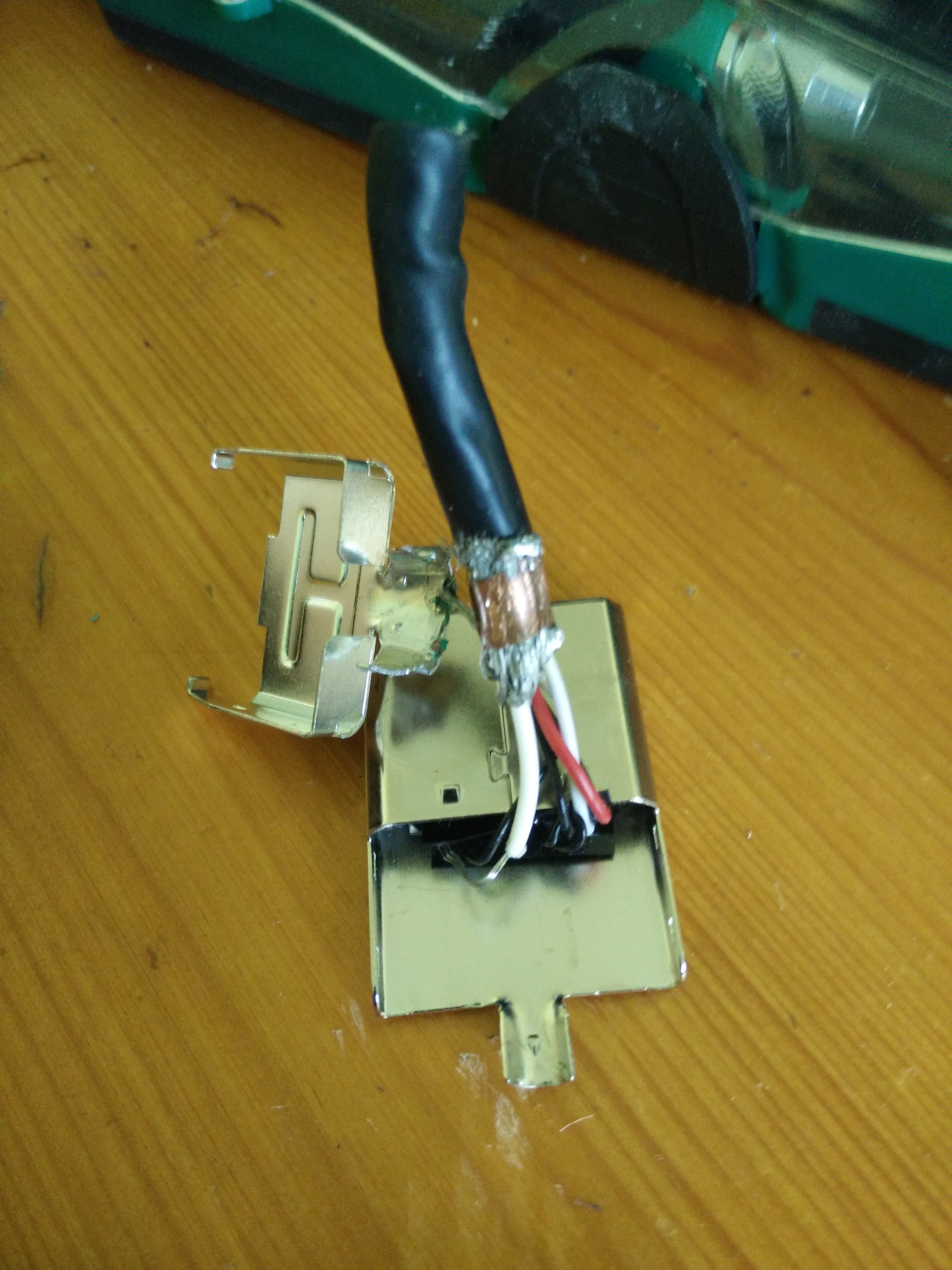

Now you should be able to remove half this casing. The socket itself with the pins will still be secured inside.


Now take a long nose pliers and carefully separate the remaining casing. Do this carefully and slowly just enough so you can remove the pin housing. The less you bend this the nicer it will look at the end. Take note of the way the two sides lock into each other. The little tabs click in from the top. So grab the side with the tab and pull up. So pull up the right hand side then turn it around and again pull up the right hand side. Patience.remember this has to go back together. Try to open this up less than I have here if you can. Don't worry about the black shield cables soldered on to the casing. We will be removing these anyway.IMG_20170930_162043.thumb.jpg.fd63059b69703812860a03d597083a25.jpg

Once you get the pins out if you're lucky you'll just have a piece of black tape over the pins. If you're unlucky you'll have a blob of hot glue over them both sides. Don't despair....you can get this off with some small effort. If you are met with the glue you can again soften it with a hair dryer and get a screwdriver and gouge the majority of it off carefully. I would then get some sticky stuff remover and spray it on and leave it for 5 minutes. Then carefully scrape lengthways down along each pin with the corner of your small flathead screwdriver until it is all gone. Take your time and make sure it's all off.

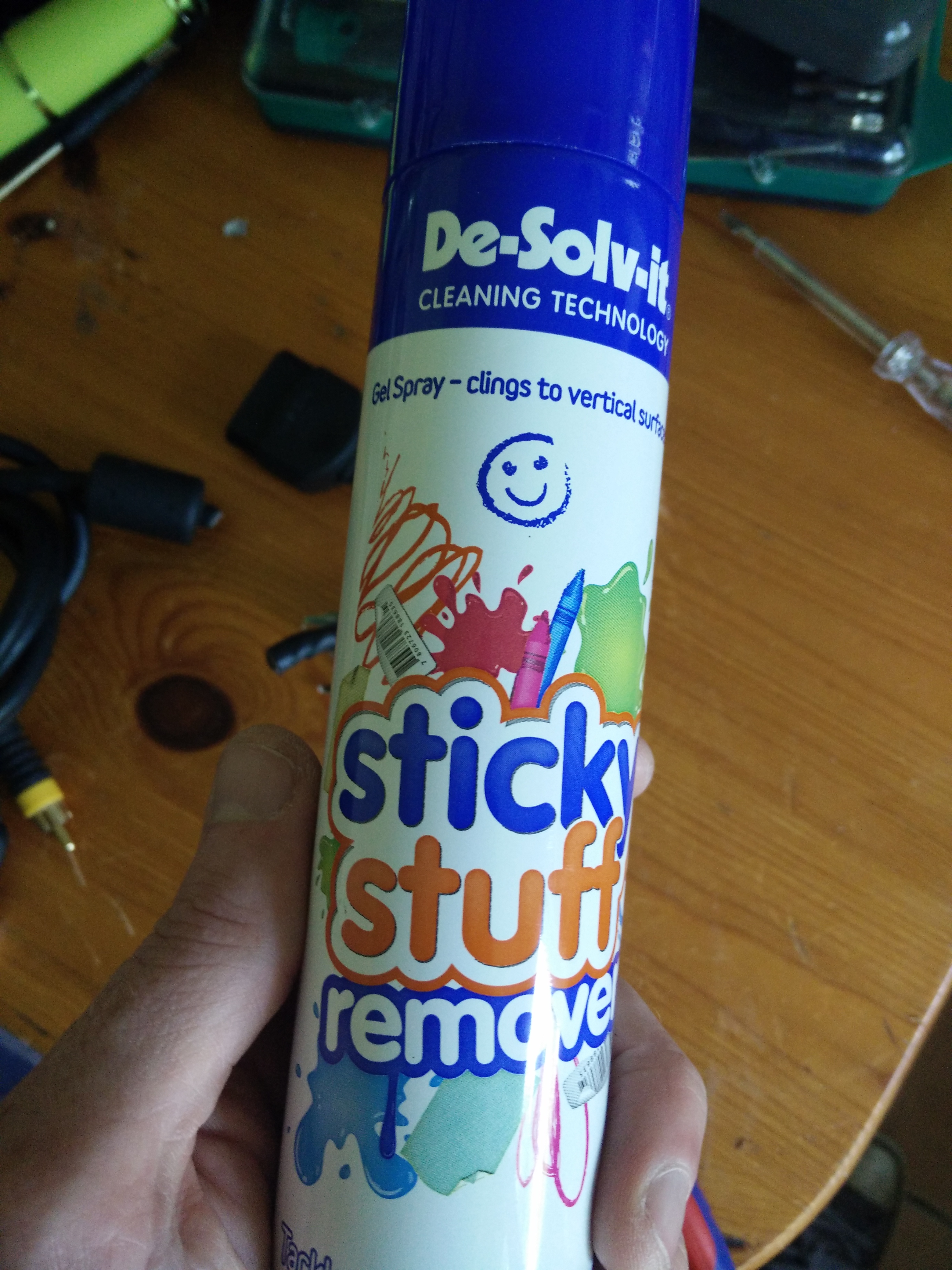

This is the stuff I use for that.


Here is the pins that the lucky people will get with the tape.

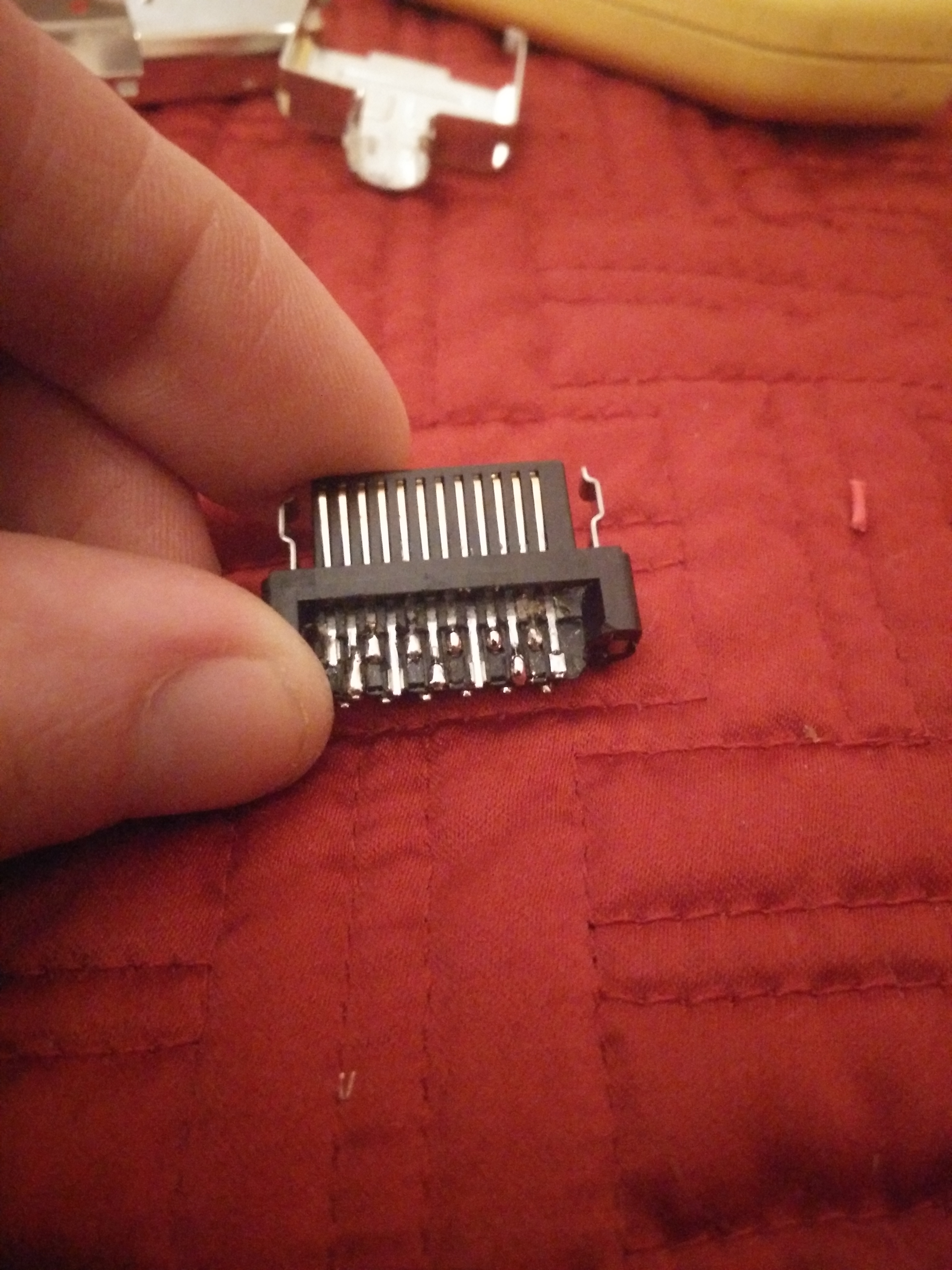

Lovely clean pins straight from the factory.

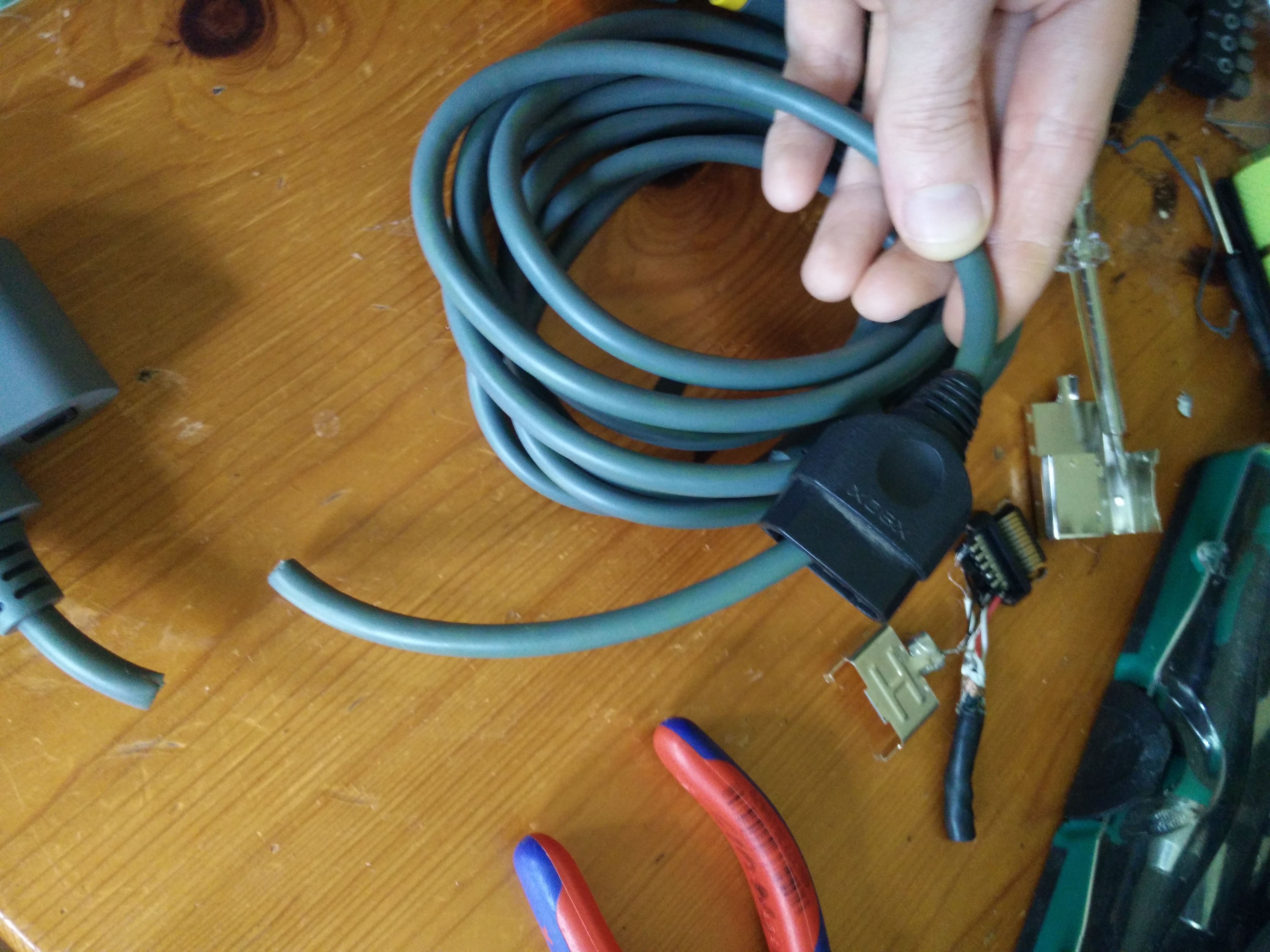

Now take your 360 component cable and cut the head off this just below it's socket and get the sleeve off your original Xbox socket and put it onto your 360 cable. Just keep turning it until it goes on. It's pretty much the exact fit.

And a second time...PUT THE SLEEVE ON YOUR 360 CABLE BEFORE YOU START TO SOLDER!!! You do not want that sinking feeling when you've just done lots of tedious work to find you've to de-solder everything because you forgot to put the sleeve on.

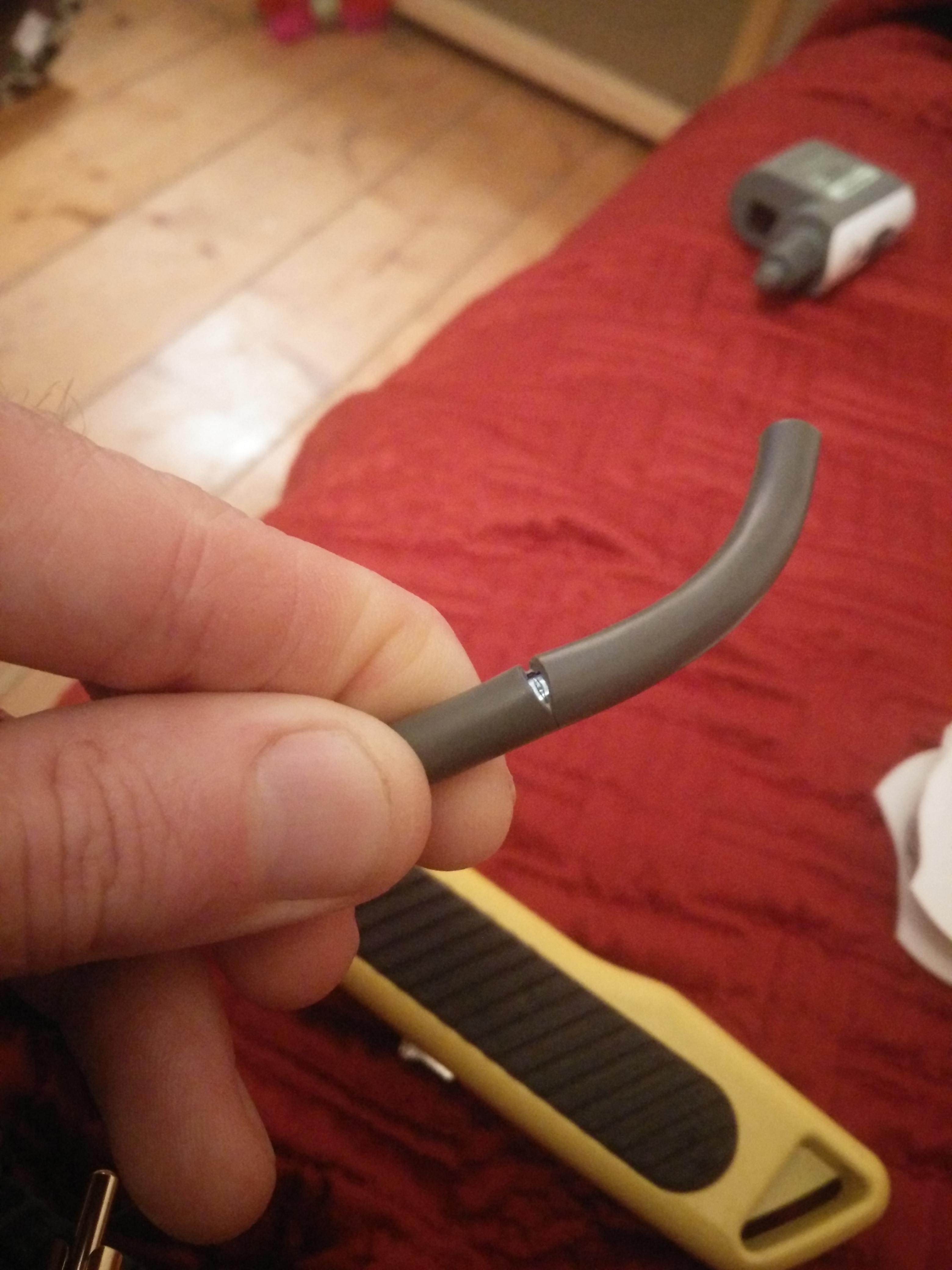

Now take a sharp knife and about 2 inches back from the end score a ring around the insulation. Take your time and bend it a bit and let the sharp knife do the work. Don't go mad here. You want all of the shields inside to be intact. Again. Patience.

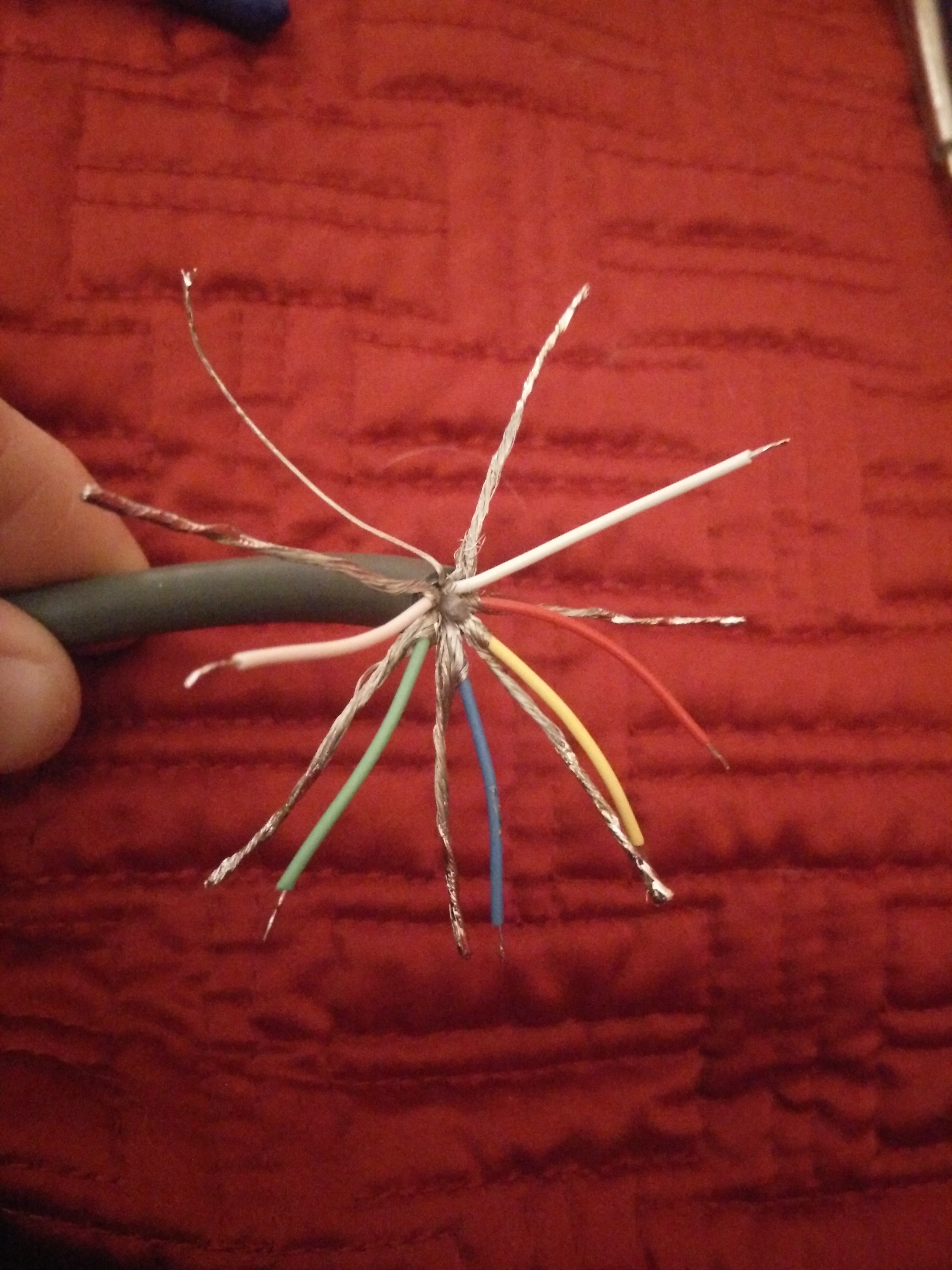

You'll be met with a load of cables with a braided shield around them. The cable with the colour is the signal every time and the shield wrapped around it is that signals ground. It is possible you could find two cables, a signal and ground both insulated and not braided shields. Either way it's the same thing and actually easier if you don't have the braided ones because the braids are trickier to solder because they are bigger.

You will also have some white fibres up the middle. Cut these off. And an overall screen, the one that's on it's own. Don't cut this off.

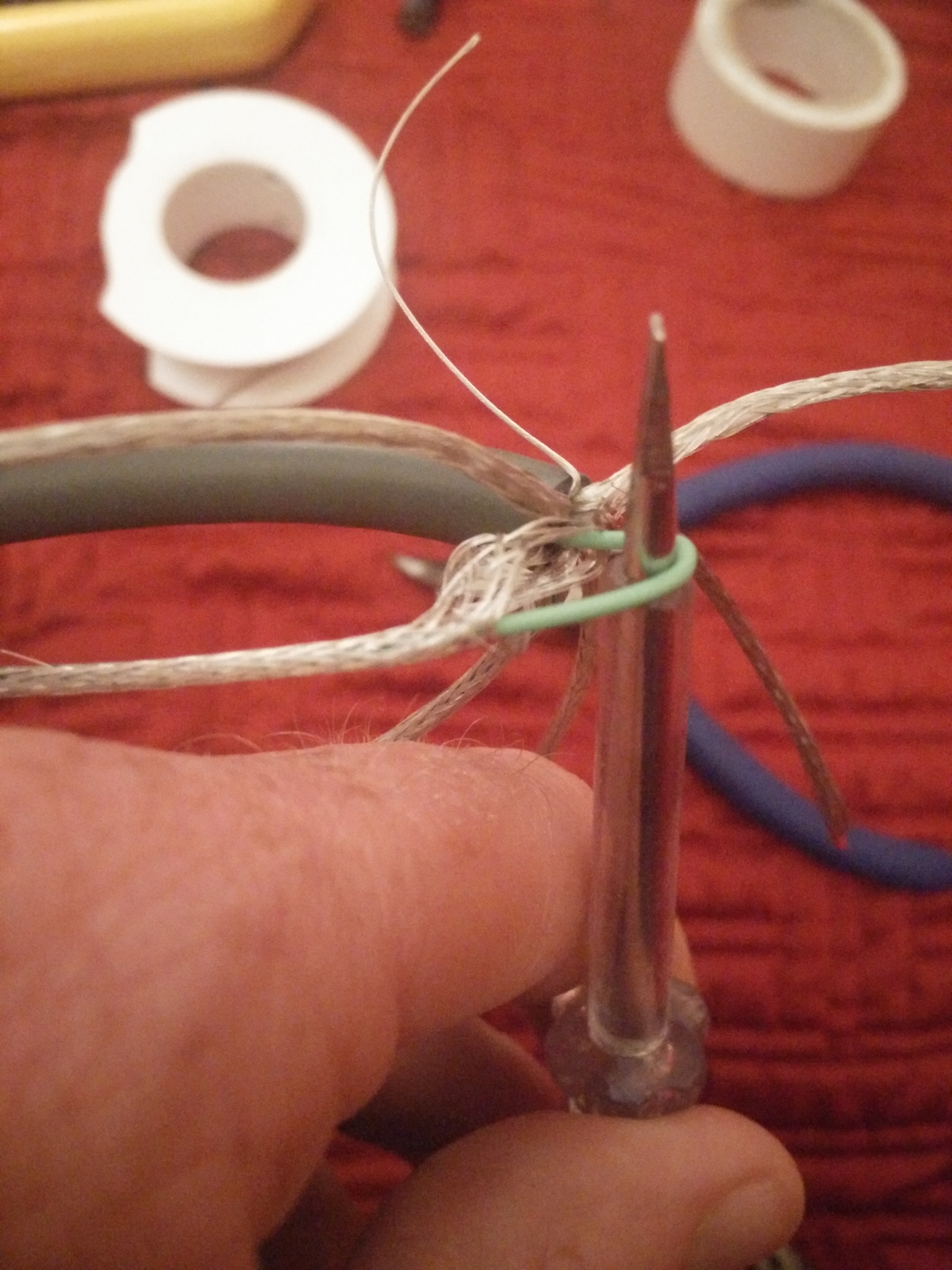

For each cable push the braid down a bit to loosen it and make a hole as near the base as you can by separating the braid and pull the coloured cable through. Then pull the braid and twist it nice and tight without breaking it. The idea is to get it as thin as you can.


When you've separated each signal from it's screen measure it against the length of cable already soldered onto the original Xbox pins and give yourself a bit extra and cut them all. Strip the ends of each signal. Only about 3 or 4mm and be careful not to pull out strands while stripping the insulation. Make sure there are on stray strands by giving the ends a little twist and tin the ends and also tin about a half inch or so of each braided screen. Try keep them tight with no loose strands. To tin put a small bit of solder on your iron and use this to heat up the wire and flow the solder with the transferred heat of the wire, not the iron. This makes the strands basically into a solid cable.



Now desolder all on the cables from your original Xbox pins. Also I highly recommend you use Weller solder or similar decent quality solder as it will make life easier than using cheap stuff.

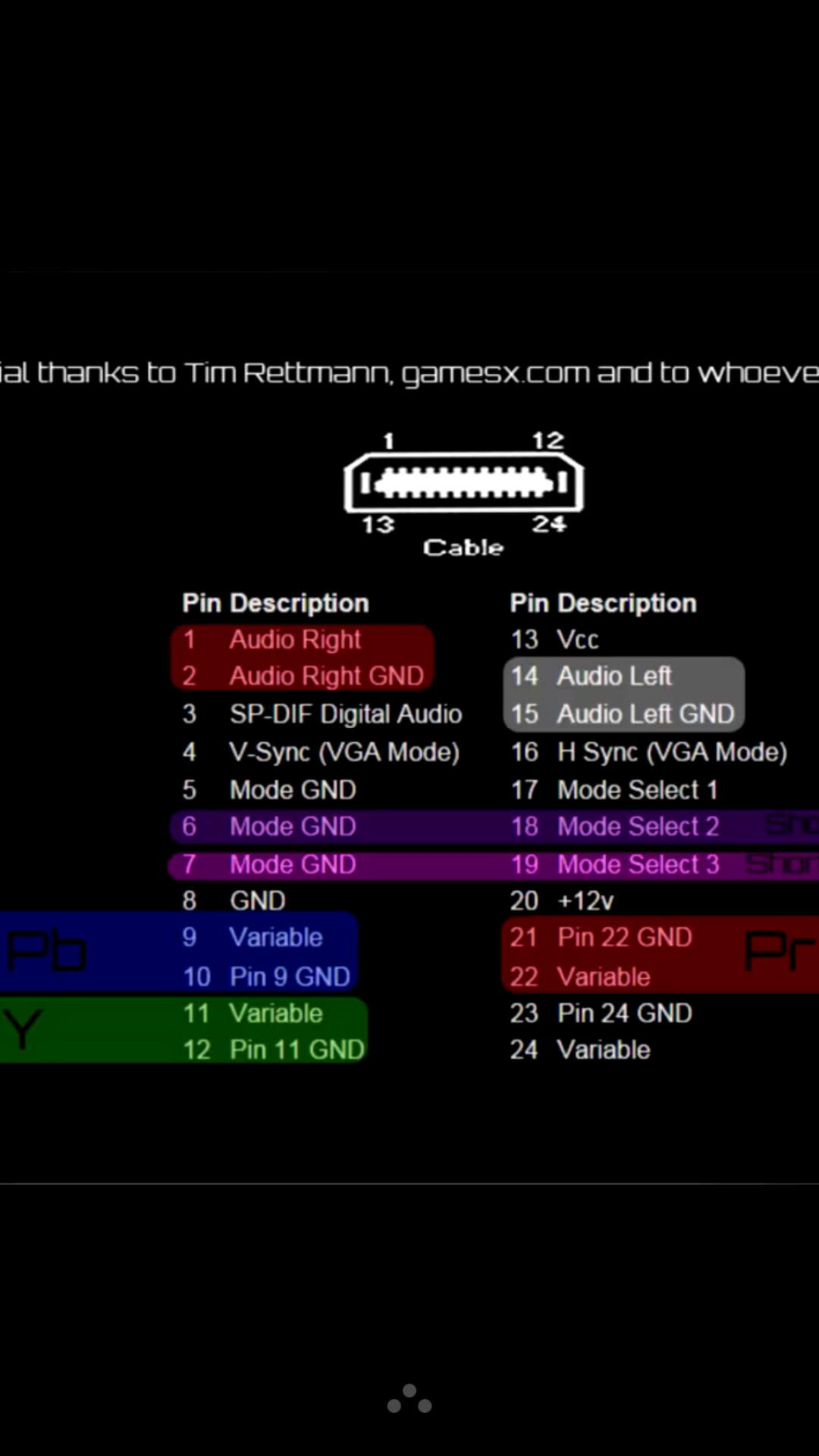

Now to the good stuff. I have taken this diagram from an online search and did not create it myself. It is the best diagram out there and credit to the Creator. I will find the name of the guy on YouTube that has done this and credit him.

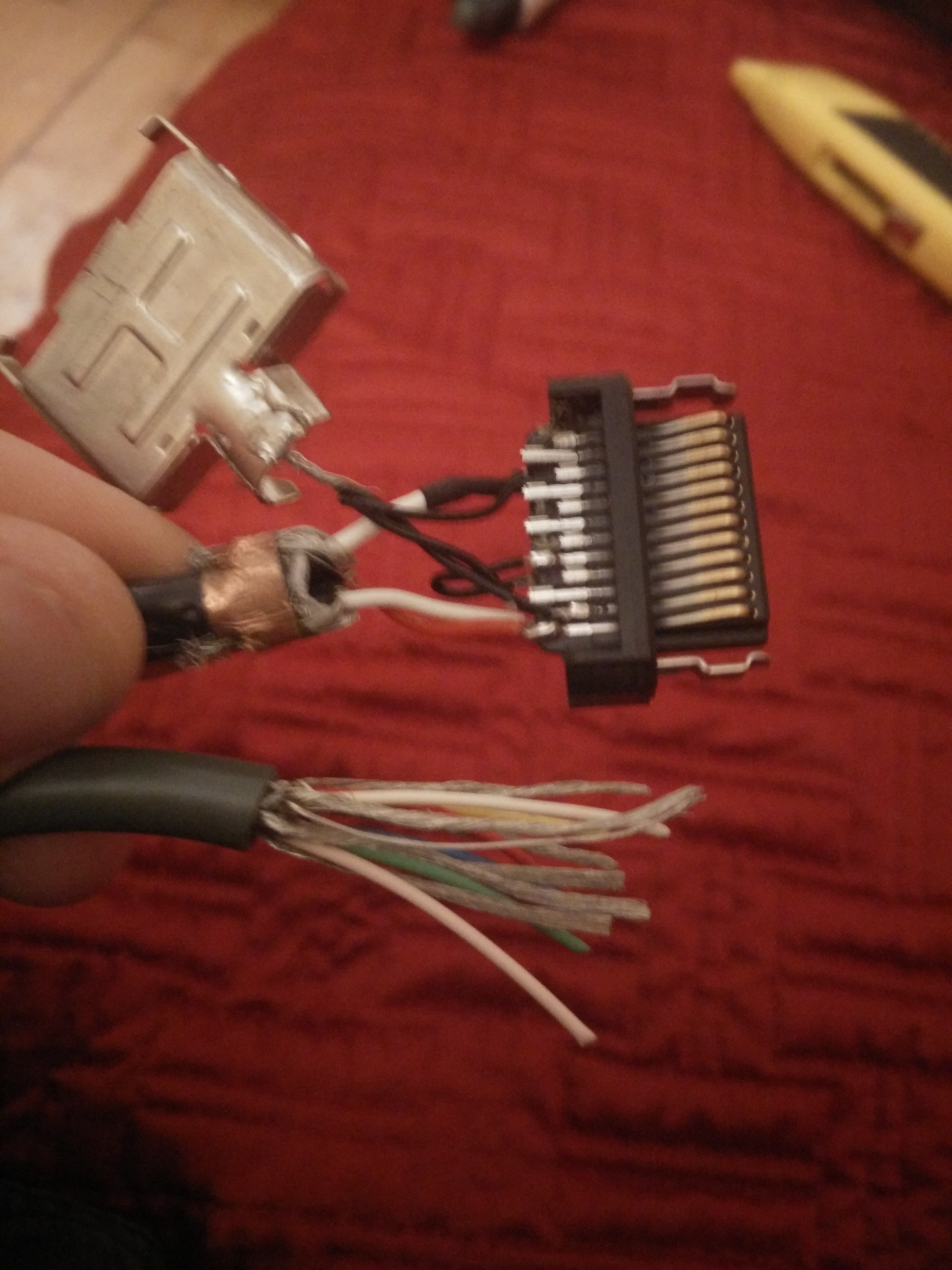

So you have already tinned your cable ends and braided screens. Now you want to go and tin each pin you will be using. Just a tiny bit of solder and heat the pin for a second. Do not stay on the pins with your iron for anything over 2 seconds or you'll melt plastic. Take your time. Everything one by one. When you've tinned all the pins all you need to do for every solder joint is put a tiny bit on your iron and press down gently and the tinned cable will marry into the tinned pin. Do not use extra solder, no need. The tiny bit I suggest for your iron is simply to transfer the heat.

Go ahead and tin pins 1, 2, 6, 7, 9, 10, 11, 12, 14, 15, 18, 19, 21 and 22.

That is for audio right and left signals and grounds, two jumpers for the mode and red, green and blue signal and grounds.

To note the connector I've used here is one that was covered in hot glue so it looks a bit bashed up but is electrically sound.

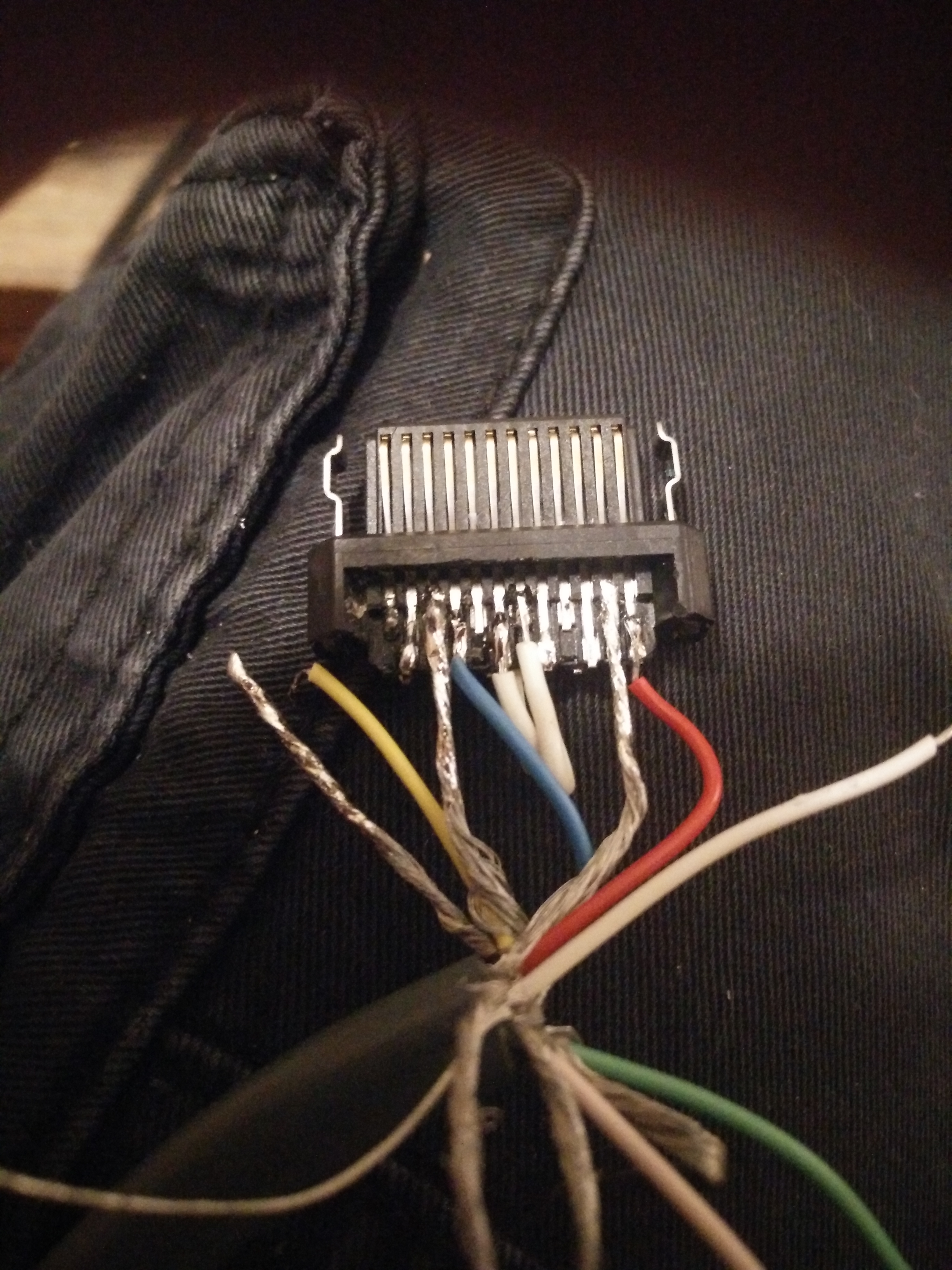

Audio right - red to pin 1 and it's ground to pin 2. Also make 2 small jumper wires and tin them as previously. Solder these as shown to pins 6 and 7.


Bend the jumper wires around to the other side and solder pin 6 jumper to pin 18 and pin 7 jumper to pin 19. Ignore that strand to the right, that is the overall screen and it's not soldered to a pin, just a bad picture.


Blue signal to 9 and it's ground to 10.


Green signal to 11 and it's ground to 12.


Audio left - white signal to 14 and it's ground to 15. Be careful that you don't mix up the pink with the white, they look very very similar.


Last but not least the pink signal wire to 22 and it's ground to 21. Careful with this one. All the rest were 'signal, ground' and this one is 'ground, signal'.


Tape up the yellow cable. Nice to have a spare socket at the end of your cable so you can fix this in years to come if one of the rca plugs every gets broken you can solder the yellow up instead. Take the yellows ground and twist the thin overall ground wire around it. Bend it as shown and then tin them together with some solder. We will use this to ground the metal housing on the plug.

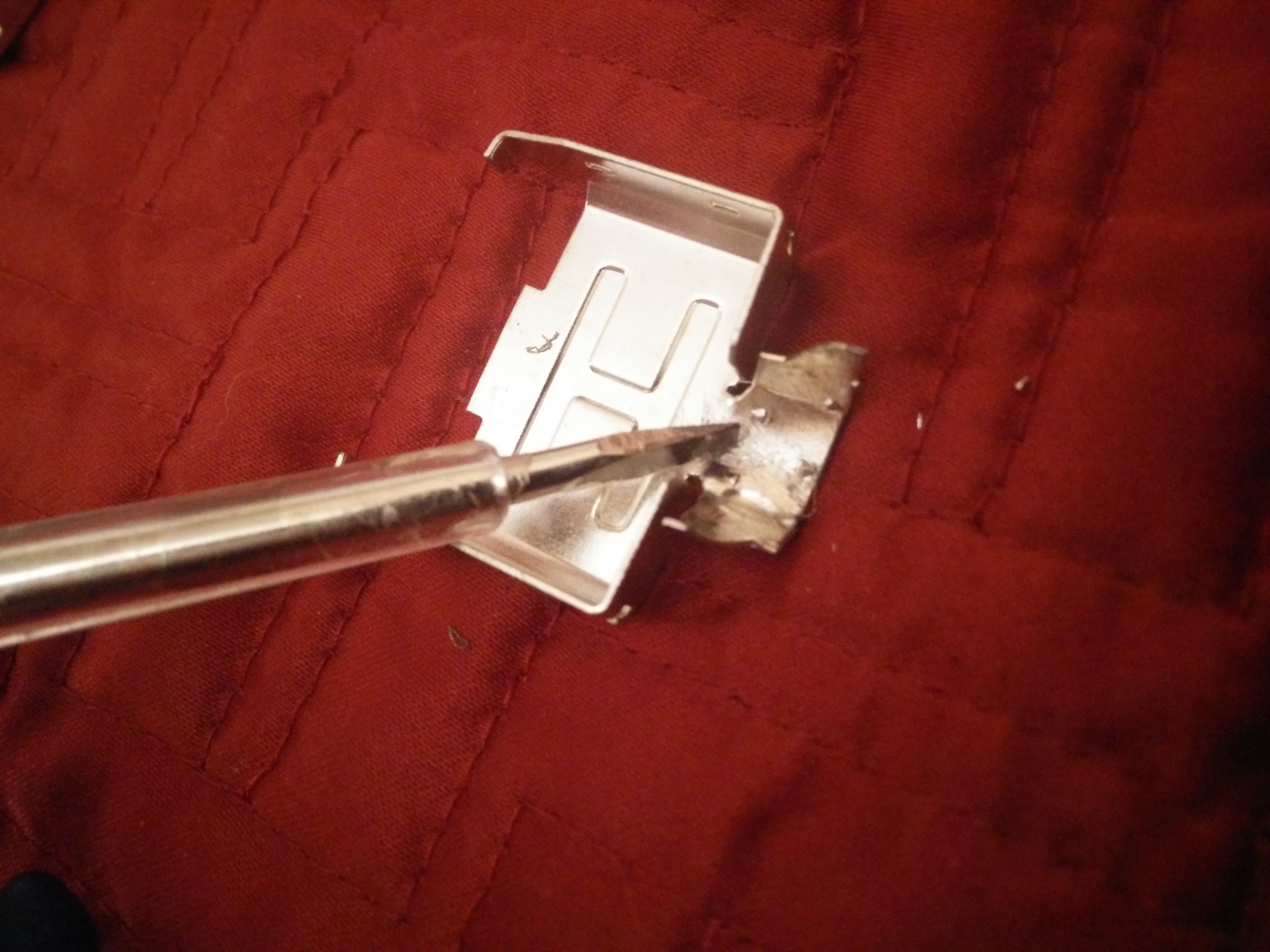

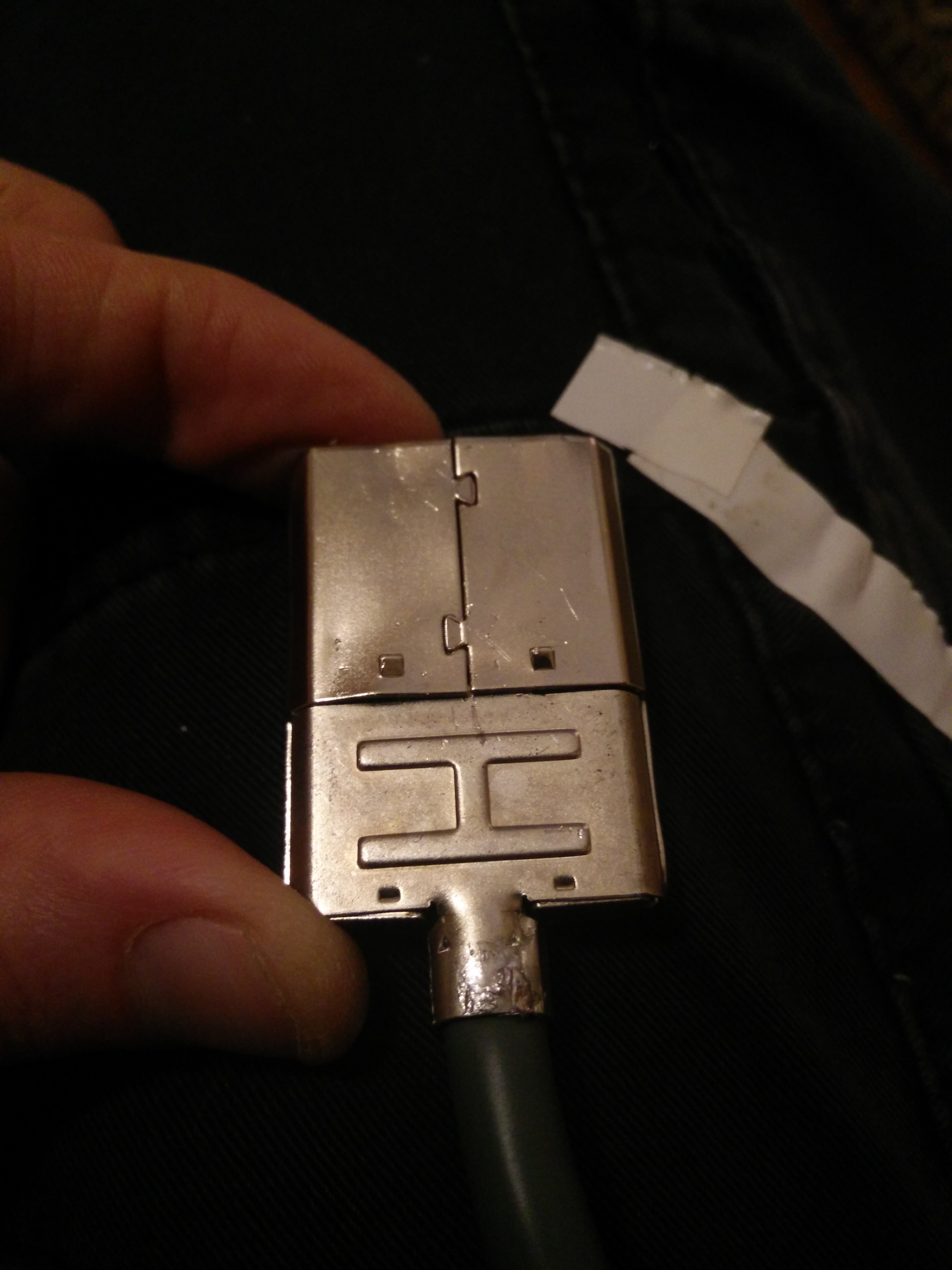

Scratch up this part on the plug housing with a screwdriver.


Now turn your iron up a touch if needed and flow solder onto the part you just scratched up. Solder the screen from the yellow that we tinned together with the overall screen to this part of the case.

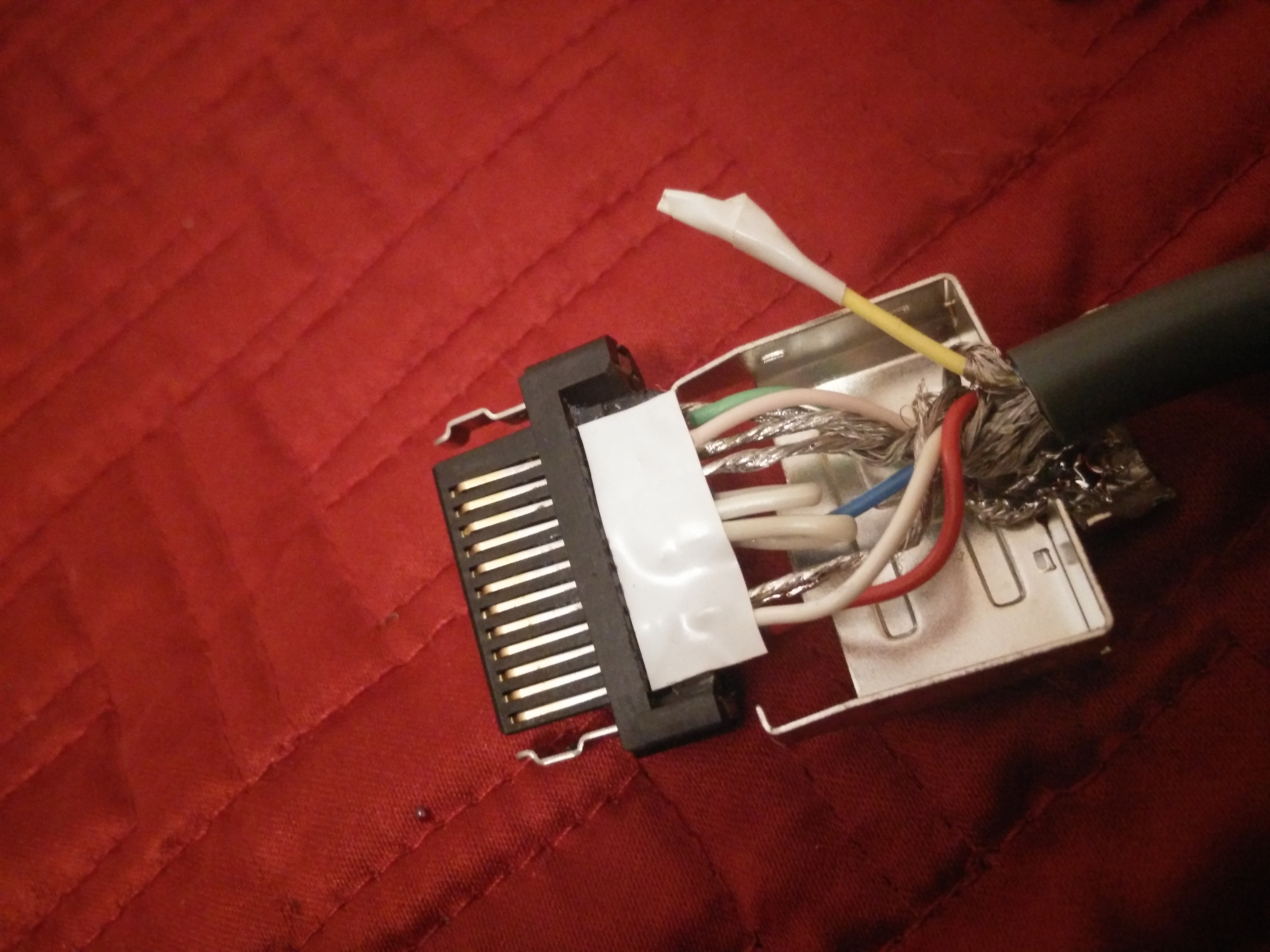

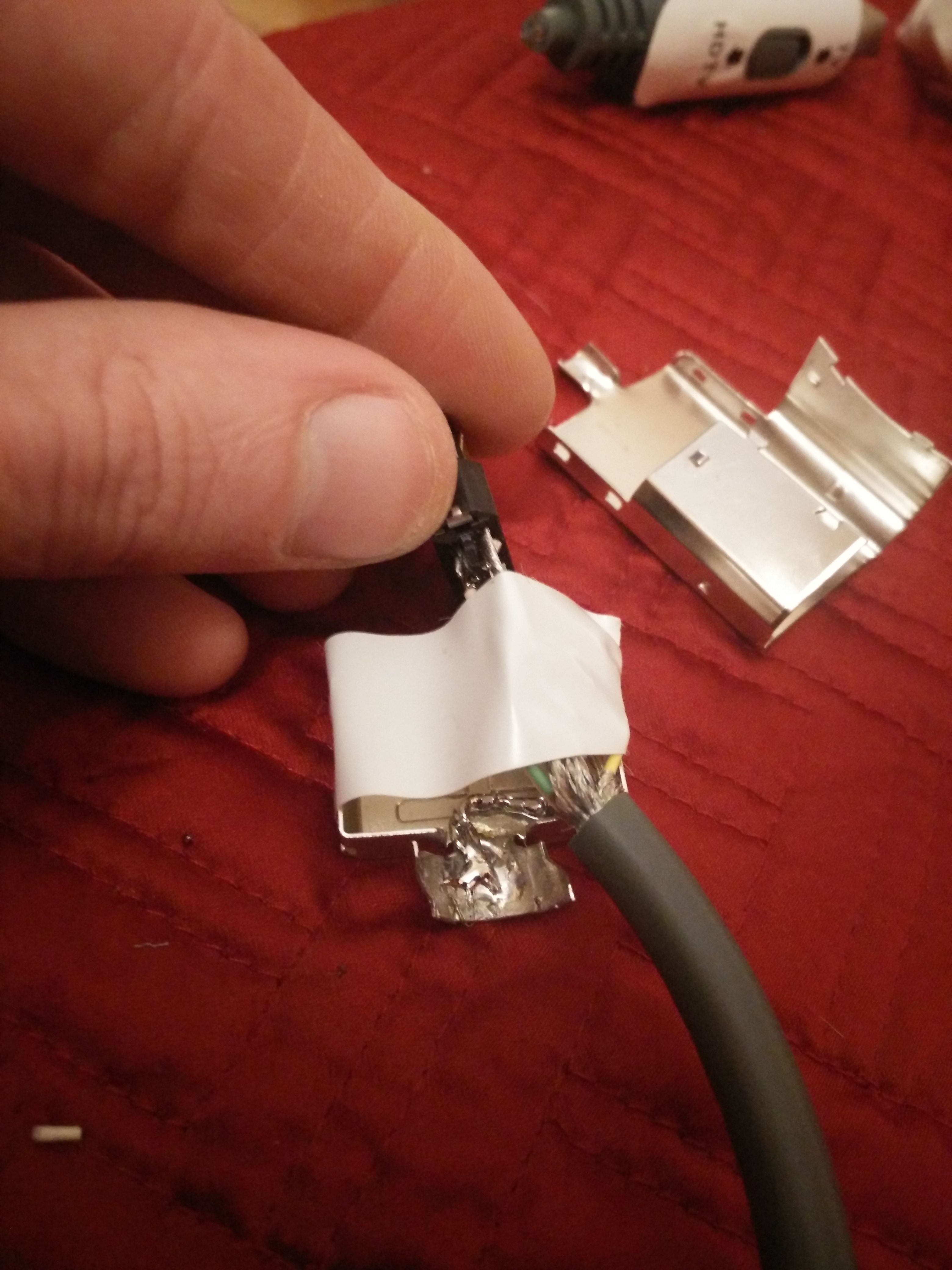

Cut a strip of electrical tape. The width of standard electrical tape is perfect to cover the pins. I recommend you do this instead of hot glue to insulate the pins.

At this point plug it in to your OGXbox and see does it all look good. (Troubleshooting tips at the bottom of this post if it doesn't look quite right)

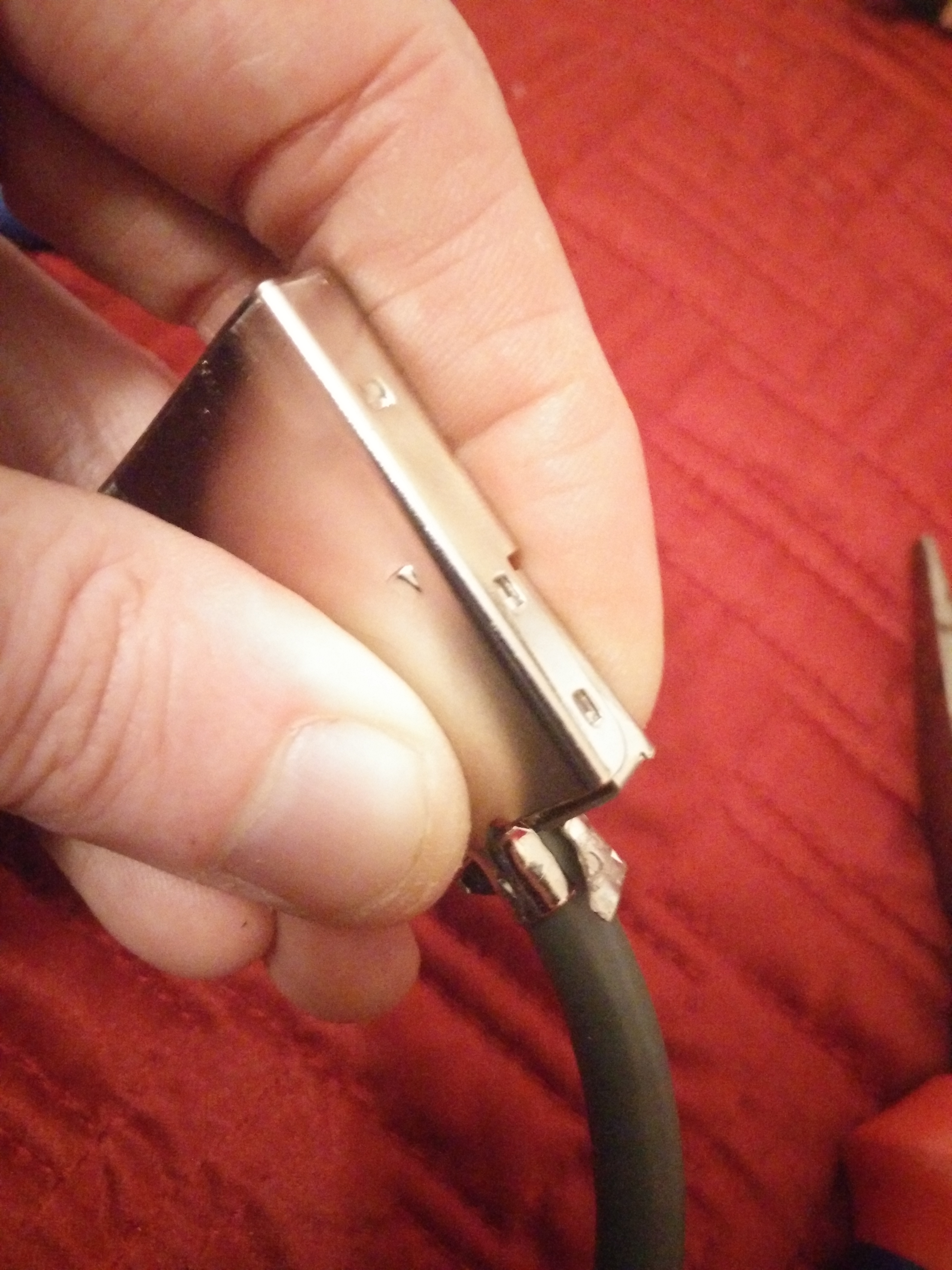

Put this guy back into the other part on the plugs housing and carefully crimp back on the cable grips after around the outer insulation.


If you were careful taking apart your plug top earlier you will be happy right about now. If you weren't don't worry, just get a long nose pliers and carefully form it all back together.

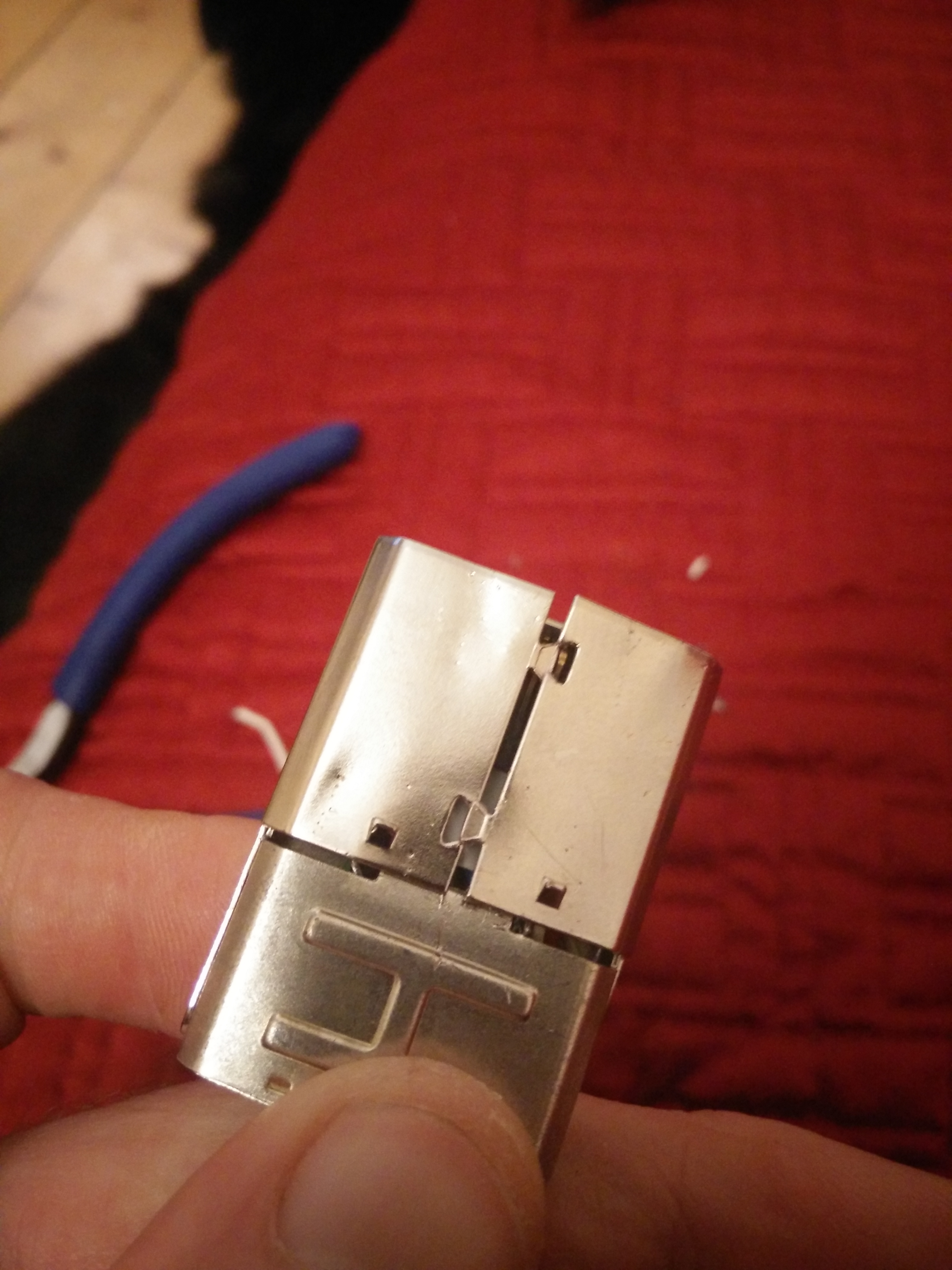

Remember these tabs click in from the top. They won't sit right if you try click them in from the under side so you'll have to do a touch of light convincing with a long nose pliers again. Be careful of the pins inside now. Don't want to break it now after all of that.


Don't lose the cool once they are almost snug you can put a bit of pressure on the tabs with a screwdriver to secure the housing. Once it is fairly solid slide your sleeve back down to cover it up.


Now what you have is a top quality fully Microsoft component cable for your OGXbox. In my opinion it's better quality by a mile than the old HD kit and and the monster cable. It's also two fingers up to the cretins that want 70 quid for a cable. You'll get a brand new 360 component cable for around the price of one of those horrendous terribly shielded Chinese component cables and everyone has an AV composite 3 plug standard cable lying around.

Also the 360 cable is about 2 metres long.

Hope this is of some use to someone. I originally threw a few of them pictures up on the Facebook group but thought I'd post it up here as a reference for anyone who is interested.

TROUBLESHOOTING:

When you have finished soldering all of the pins do a continuity test with your multi-meter between each pin that are next to each other, You may have one strand from the shield bridging the pin next to it. If this is the case you can try run a sharp knife between the pins to separate any stray strands. A quick multi-meter test is to test between each tip of each RCA plug to the pin you soldered for that signal on the plug. Also check the tip of each against ground (outer ring or barrel the of RCA) make sure there is nothing bridged out. Note that all ground will be connected together.

If you plug it in to your OGXbox and it doesn't look right, go back and check each cable you soldered against the diagram again and if needs be reflow any dodgy joints.

If you plug it in to your OGXbox and you are missing a colour again go back and check your wiring/soldering. The colours are RGB (Red = Pink cable, Green = Green cable, Blue = Blue cable) For example if you see only Greens and Blues when you load up a game the issue is with your Red colour (Pink cable) and you may have mixed up the ground and signal. The same is true for any colour you seem to be missing.

Also do a test of the Audio Right and Left by plugging one out at a time and see do you still have sound. Any issues, the fix will be as above, re-check your wiring against the diagram and re-flow if necessary.

Try the cable with a game you know well so you know how it should look colour wise.



If it all looks and sounds good close it all back up and enjoy!! Note also that there is a perfectly good optical audio pcb inside the Xbox 360 head, maybe someone could have a go getting that usable. You can also connect the yellow to pin 24 and it's ground to 23 instead of connecting ground to the overall screen and leaving yellow spare if you want to have the option of using it like a regular composite AV cable like the one we butchered to make this. I rather keep it as a spare, means your cable will last long into the future and I don't ever plan on using it as a regular yellow, red and white composite.



Edited by Cian Cunningham
Added some troubleshooting tips.
  • Like 2

Share this post


Link to post
Share on other sites

Saw this type of mod on a YouTube page a while back but the guy made it far to complex.

Pay day is here and I can't find my stash of OGXbox video cables. Time to eVilbay me some spare parts..



Im wondering if I can then plug the cable into my HDMI adaptor to get HDMI for my big screen.

Edited by big F

Share this post


Link to post
Share on other sites

There's a video on YouTube and the guy for some reason scraps the sleeve and makes his own sleeve from hot glue. It's a great video until that horrendous point. I'm sure you could alright but not sure if you'd get input lag. Television on game mode perhaps? I use a device called an OSSC. Open source scan converter. It's a line doubler so isn't an upscaler so doesn't have a lot of input lag.

Check it out here.

Please login or register to see this link.

You do need separate audio though like speakers or a sound system with a component cable. The input has to be RGB on it but if you use a scart connection you can get audio through hdmi. It uses a dvi to hdmi lead to your television.



Please login or register to see this link.



You've to be on a waiting list for it too. Maybe not worth it if you're getting 720p out of the Xbox but if you're playing emulators on it I'm sure they play at a lower resolution. The OSSC shows you the resolution of the signal you're getting out of the console on it's LCD screen too which is nice.

Share this post


Link to post
Share on other sites

I've seen that video, hot glue seems to be the thing at the moment, it's being used to correctly secure things, as intended and seemingly now as a replacement for heat shrink or electrical tape on so many builds I see on the web.

Its so bodgy, and in the case of that lead not even needed.

I have a board that scan doubles out put on my Amiga to allow it to work on standard VGA. There are several overpriced ones on sale at various places, but mine cost me about £20 to make, and does the job easily.

I was thinking of HDMI as I have a screen that I use for several things and have a HDMI auto switch for it as I have more things than it has sockets :)

I will take a look at the OSSC.

Share this post


Link to post
Share on other sites

Check N64 Freak's section here at ogXboxm.com for information about his Xbox to HDMI adapter.

Argh, what happened to it?  There's only a post about his 1.4GHz upgraded motherboards.  The posts about the hi-def hdmi adapter are gone! :(

Edited by KaosEngineer
  • Like 1

Share this post


Link to post
Share on other sites

I'd thought it was under N64 Freak's section but it is not.  Thanks for the link just saw it again as N64 Freak just posted a new message to the thread; therefore, it showed up in the recent list again.

Edited by KaosEngineer

Share this post


Link to post
Share on other sites

Hi.  Sorry to necro an old topic if that's frowned upon here but I just signed up to this forum just to post this (but I hope to hang around).  My story: against my better judgement I bought one of those cheap-ass 3rd party component cables for my soft-modded original Xbox (UnleashX).  The video quality is great but the audio was piss, with an incredibly loud and annoying hum that renders it unusable.

So I've been following links about this DIY component cable for the Ogxbox and this tutorial was the most detailed.  I'm going to attempt to make this though it's been years since I did serious soldering.  But I have all the equipment and even bought a heat gun to soften the sleeve assemblies on the cables I'll be cannibalizing.   I find it beyond ridiculous that even used Xbox OEM component cables trend for $50+ (USD)

My question is: how do I (re)use or connect up the optical connector on the 360 component cable to the DIY one since I'd much prefer digital audio to analog.  Is there a tutorial for that anywhere? Thanks for any help.

Edited by XboxMon

Share this post


Link to post
Share on other sites

I don't think you do.  the optical audio jack is in the AV plug on the 360 cable that's not used when building a Xbox component cable by cannabalizing the 360 cable for the RGB component (YPrPb actually) and Red/White RCA jack audio connectors.

You can add your own either coaxial or optical transmitter  internally mounted to the back of the console itself.

Something similar to a Toshiba ToTX177(F,T) or TOTX179 optical transmitter.  Or an orange RCA jack for a digital coaxial jack.

See the following Xbox AV cable wiring diagrams: Please login or register to see this link.

Edited by KaosEngineer
  • Like 1
  • Thanks 1

Share this post


Link to post
Share on other sites

Maybe I misunderstood the purpose of the optical port built-into the Microsoft OEM component cable for the Xbox 360 then (which I recently purchased used from eBay for $5.99, btw, in preparation for this mod I'll be attempting).  I saw Please login or register to see this link. on youtube from a guy who made this DIY OGXbox compoent cable but he made an optical connector on it.  He doesn't go into any detail at all on how he did it.  If you expand the first comment, someone chimes in on which pins need to be connected for the cable but a followup comment from someone who tried his method seems to imply it doesn't work which is why I wanted to find a proper tutorial on it.  I'm perfectly willing to just follow Cian Cunningham's tutorial exactly instead of attempting to merge another DIY mod into it.  I just want decent, hum-free audio coming from the DIY component cable.



Edited by XboxMon

Share this post


Link to post
Share on other sites
18 minutes ago, XboxMon said:

Maybe I misunderstood the purpose of the optical port built-into the Microsoft OEM component cable for the Xbox 360 then (which I recently purchased used from eBay for $5.99, btw, in preparation for this mod I'll be attempting).  I saw Please login or register to see this link. on youtube from a guy who made this DIY OGXbox compoent cable but he made an optical connector on it.  He doesn't go into any detail at all on how he did it.  If you collapse the first comment, someone chimes in on which pins need to be connected for the cable but a followup comment from someone who tried his method seems to imply it doesn't work which is why I wanted to find a proper tutorial on it.  I'm perfectly willing to just follow Cian Cunningham's tutorial exactly instead of attempting to merge another DIY mod into it.  I just want decent, hum-free audio coming from the DIY component cable.



check the link KE posted above.
what he is saying is correct, but the pins are passed through to the connector for this as well.

IGNORE THE ONE ORIGINALLY POSTED, its labeled differently and makes it confusing.

this is in blakes post on the topic i believe

xboxavippinouttr0-png.13081

1 is voltage out, 6 is optical data, and 24 is voltage return. (as seen in diagram above)


pin 1, 6, and 24 are used for optical
as seen in the diagram KE posted (also below)




This one gives a perfect visual on how to wire the optical

i'd say this.

study your part before it comes off the 360 cable and label it properly using the 360 AV pinout diagram found via google.

  • Like 1
  • Thanks 1

Share this post


Link to post
Share on other sites

I have had no issues with hum on the audio with component. If you really want to do optical audio get the part number off the toslink module in the 360 cable and Google for the data sheet. Also Google 'original Xbox toslink' and you will get info. There's a forum post on xbmc4xbox with some info. I would advise to look into adding a toslink' port to the Xbox itself, any way of adding it to the cable is just not going to look clean. Best thing to do is just follow the tutorial and make a quality component cable instead of jumping in too deep straight out of the gate. If you feel you still need toslink' look into it after. Also read the entire tutorial first, there's some notes at the bottom worth knowing first.

Share this post


Link to post
Share on other sites
9 minutes ago, wikati said:

check the link KE posted above.
its the best diagram ive seen for this mod.

IGNORE THE ONE ORIGINALLY POSTED, its labeled differently and makes it confusing.

this is in blakes post on the topic i believe

Please login or register to see this link.

1 is voltage out, 6 is optical data, and 24 is voltage return. (as seen in diagram above)


pin 1, 6, and 24 are used for optical
as seen in the diagram KE posted (also below)



Please login or register to see this link.

This one gives a perfect visual on how to wire the optical

i'd say this.

study your part before it comes off the 360 cable and label it properly using the 360 AV pinout diagram found via google.

Thanks for your input.  Like others thinking of attempting this mod, it disturbs me a bit that I'll be beheading a perfectly fine Microsoft OEM composite AV cable (despite it's inferior video quality compared to component), so I might attempt this DIY project using the AV connector from the 3rd party cable instead since it has the same OGXbox pin configuration as the OEM cable.  AFAIK, it's the poor shielding in the 3rd party cable that's giving me grief not the AV connector.

Edited by XboxMon
  • Like 1

Share this post


Link to post
Share on other sites

I advise to just use the Xbox oem av cable. Even the pin connector will be better quality. It's not like you are going to ever use it again once you make the component. Defeats the purpose to me to not to use the OEM. I literally throw them out.

  • Thanks 1

Share this post


Link to post
Share on other sites
13 minutes ago, Cian Cunningham said:

I have had no issues with hum on the audio with component. If you really want to do optical audio get the part number off the toslink module in the 360 cable and Google for the data sheet. Also Google 'original Xbox toslink' and you will get info. There's a forum post on xbmc4xbox with some info. I would advise to look into adding a toslink' port to the Xbox itself, any way of adding it to the cable is just not going to look clean. Best thing to do is just follow the tutorial and make a quality component cable instead of jumping in too deep straight out of the gate. If you feel you still need toslink' look into it after. Also read the entire tutorial first, there's some notes at the bottom worth knowing first.

Thanks, but I'll probably just end up sticking to your tutorial for this first attempt to make it less complicated for myself since it's been so long since I even held a hot iron.  Even the sound quality I get from the OEM composite cable is quite acceptable (no hum horrors) compared  to the 3rd party component cable I bought that gave me major buyer's remorse and I figure this DIY will sound at least as good as that.

Edited by XboxMon

Share this post


Link to post
Share on other sites

It's interesting that I'm more excited about this DIY prospect than I am about the PS3 I recently bought used from eBay for $42 shipped that seems to be in perfect working condition (and doesn't look too bad either).  I just have a certain fondness & enthusiasm for my big black box that I just don't have for my other consoles.  Black is beautiful, man :D

Edited by XboxMon

Share this post


Link to post
Share on other sites

You should have no issues once you take your time. What you will end up with is a fully Microsoft cable for less than ten dollars. Best of luck with it. Let us know how you get on.

  • Thanks 1

Share this post


Link to post
Share on other sites
3 hours ago, XboxMon said:

Thanks for your input.  Like others thinking of attempting this mod, it disturbs me a bit that I'll be beheading a perfectly fine Microsoft OEM composite AV cable (despite it's inferior video quality compared to component), so I might attempt this DIY project using the AV connector from the 3rd party cable instead since it has the same OGXbox pin configuration as the OEM cable.  AFAIK, it's the poor shielding in the 3rd party cable that's giving me grief not the AV connector.

Ya, i used a monoprice multi-system cable. It had ends for wii ps3/ps2 and xbox 360 so i lopped off the 360 and added the OG so i have ps2/wii and xbox all modded to the hilt with any and every game that ever crossed my path. haha, its excessive..... and not fully utilized but its fun. AND i dont have to piss with swapping any cables.

i also refuse to sacrifice my precious microsoft AV cable, i used a dead chinese cable for the PIN end.  LOL

Likely not as good as an end to end Microsoft cable. but its just another toy in the toybox.

EDIT: One drawback is when multi systems are connected at once it gets a ton of interference. oh well. such is life. easier to do this than reach behind the TV

another EDIT: when one system at a time is connected it works very well.



FINAL EDIT: You are correct about the 3rd party AV connecter. its just fine. its the cable itself that lacks shielding thus psi-ops mind control chem trails interfere with all the GAMEZ




Please login or register to see this link.





Share this post


Link to post
Share on other sites

While there you could have shown how to do the digital audio part, SPDIF.. The parts were already there in the xbox 360 plug.

Good tutorial.

Share this post


Link to post
Share on other sites

Wish there was a 360 to og xbox converter. like a hdmi to dvi. I have several 360 comonent/vga cables laying around from my 360 modding/bulk buying days. Sadly only one OGxbox component. At least I have about a dozen A/V cables :D





Share this post


Link to post
Share on other sites
12 hours ago, AlaskaCC said:

Thanks for this tip.  I have one of these cables laying around and will give it a try.

Golden tip : i watched the video and because of it , i fucked up the shielding, just do the same thing as in the images above.
Open it up on the cables side and the shielding comes off pretty easy (and intact, cost me 2 xbox av cables and a hellfire one till i noticed how easy it should have been :p)

Share this post


Link to post
Share on other sites
